Description
General part information

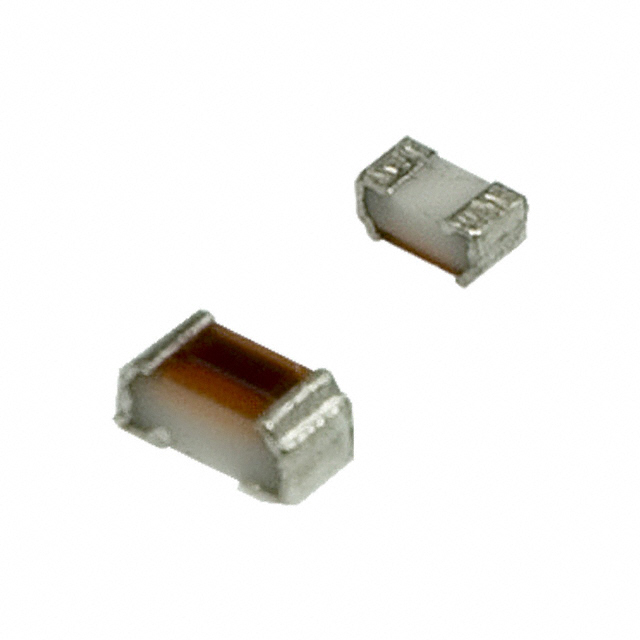

HTC0603-1E-1R5-J-L5
1.5 pF Thin Film Capacitor 25 V 0201 (0603 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | HTC0603-1E-1R5-J-L5 |
|---|---|
| Capacitance | 1.5 pF |
| Features | General Purpose |
| Height - Seated (Max) | 0.012 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
| Tolerance | 5 % |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
