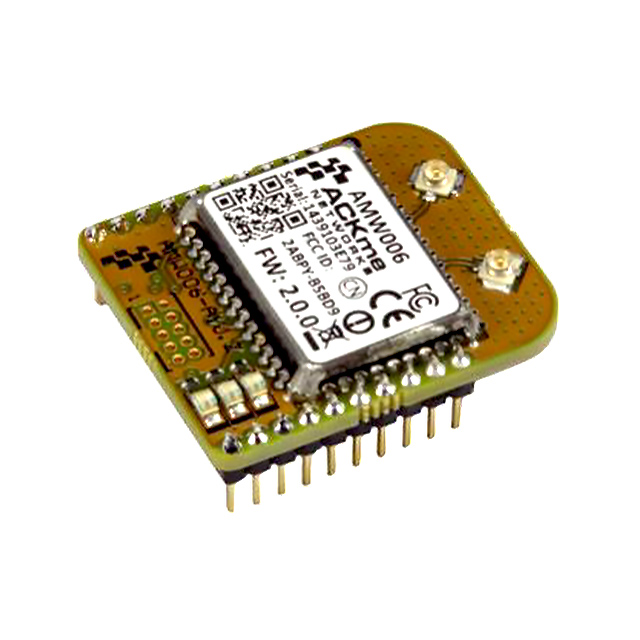

AMW006-A1WR

Silicon Labs

RF TXRX MOD WIFI WIRE ANTENNA TH

Search across all available documentation for this part.

Silicon Labs

RF TXRX MOD WIFI WIRE ANTENNA TH

Technical Specifications

Parameters and characteristics commom to parts in this series

RF TXRX MODULE WIFI

Part	Protocol	Power - Output	Current - Transmitting	Sensitivity	Current - Receiving	Package / Case	RF Family/Standard	Frequency	Voltage - Supply	Data Rate	Antenna Type	Memory Size [custom]	Memory Size [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Serial Interfaces
Silicon Labs AMW006-3.1.0R
Silicon Labs AMW006-A1WR	802.11b/g/n	18 dBm	11.4 mA	-94 dBm	5.7 mA	Module	WiFi	2.4 GHz	3.3 V	54 Mbps	Integrated, Wire Antenna	96 kB	1.5 MB	Through Hole	-30 ░C	85 °C	I2C, SPI, UART
Silicon Labs AMW006-3.0.0R
Silicon Labs AMW006-A1W	802.11b/g/n	18 dBm	11.4 mA	-94 dBm	5.7 mA	Module	WiFi	2.4 GHz	3.3 V	54 Mbps	Integrated, Wire Antenna	96 kB	1.5 MB	Through Hole	-30 ░C	85 °C	I2C, SPI, UART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	900	$ 24.76

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Wire Antenna Through Hole
