BF5118-20B
ActiveJKL Components Corp.
CCFL WH LAMP 600V 5MA 5.6X118MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BF5118-20B
ActiveJKL Components Corp.
CCFL WH LAMP 600V 5MA 5.6X118MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BF5118-20B |
|---|---|
| Current | 5 mA |
| Output | 7000 cd/m2 |
| Size / Dimension [x] | 5.6 mm |
| Size / Dimension [y] | 118 mm |
| Type | CCFL, Tri-Phosphor RGB White Lamp |
| Voltage | 600 V, 305 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.89 | |
| 10 | $ 9.20 | |||
| 100 | $ 7.63 | |||
| 500 | $ 6.95 | |||
| 1000 | $ 6.73 | |||
Description
General part information
BF5118-20B

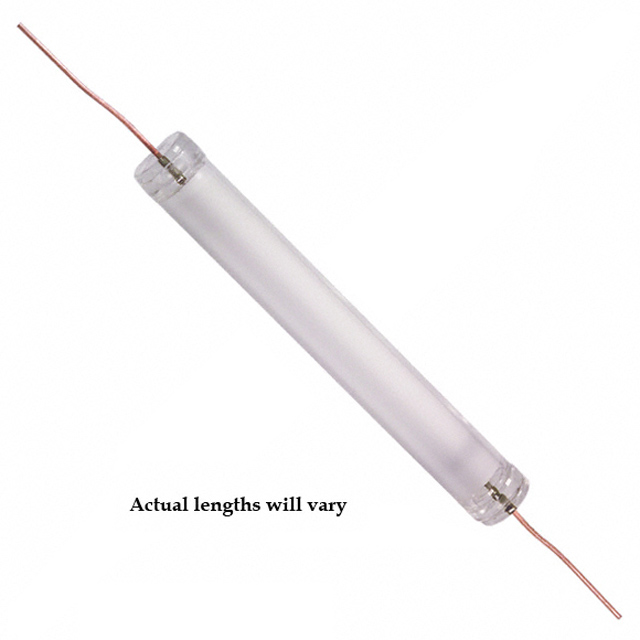

CCFL, Tri-Phosphor RGB White Lamp 600V (Start), 305V (Operating) 5 mA 7000 cd/m2 5.6mm x 118mm
Documents
Technical documentation and resources
