FMCA2283-200CM
ActiveFairview Microwave
CBL ASSY QMAPLUG-QMAJACK 78.74
FMCA2283-200CM
ActiveFairview Microwave
CBL ASSY QMAPLUG-QMAJACK 78.74
Description
General part information
FMCA2283-200CM

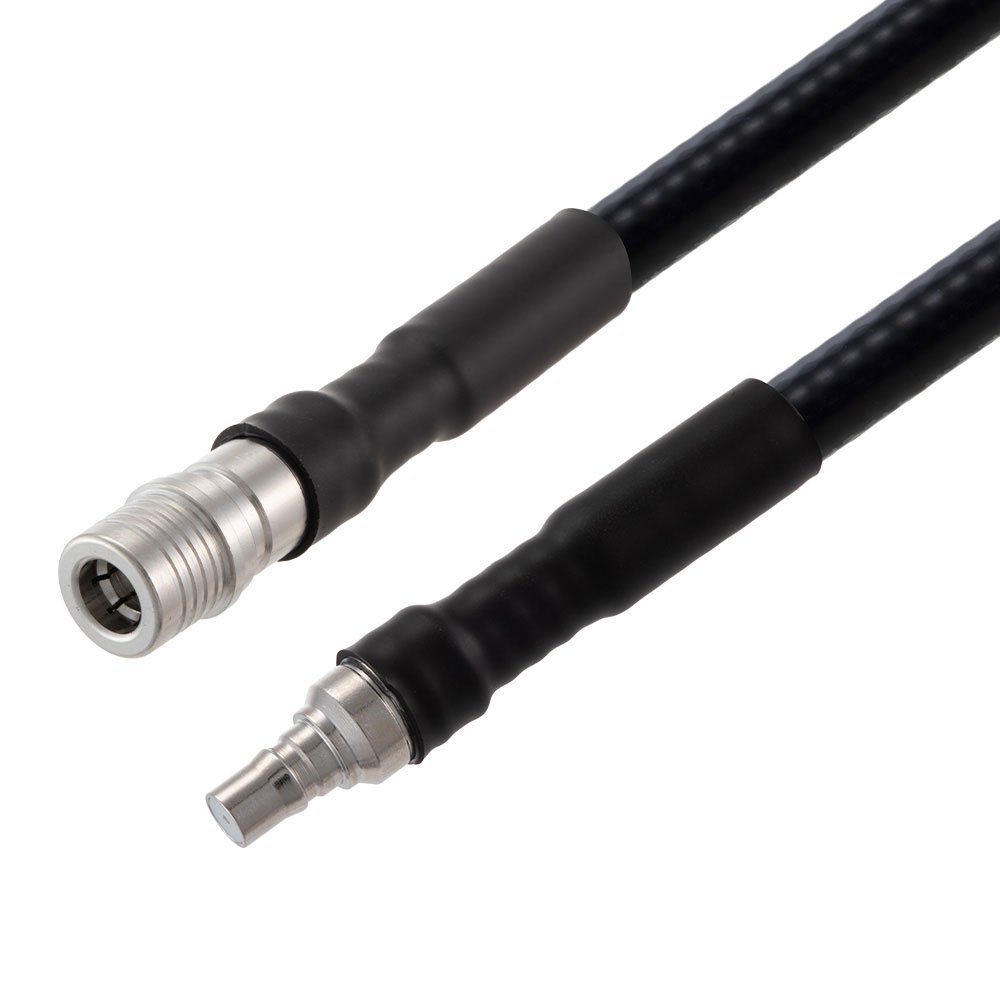

Cable Assembly Coaxial QMA to QMA 1/4" Superflexible Coaxial Cable 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2283-200CM |
|---|---|
| 1st Connector | QMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | QMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 1/4" Superflexible Coaxial Cable, Superflexible Coaxial Cable |
| Cable Type Size | 0.25 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length (ft) | 6.6 ft |
| Overall Impedance | 50 Ohms |
| Style | QMA |
