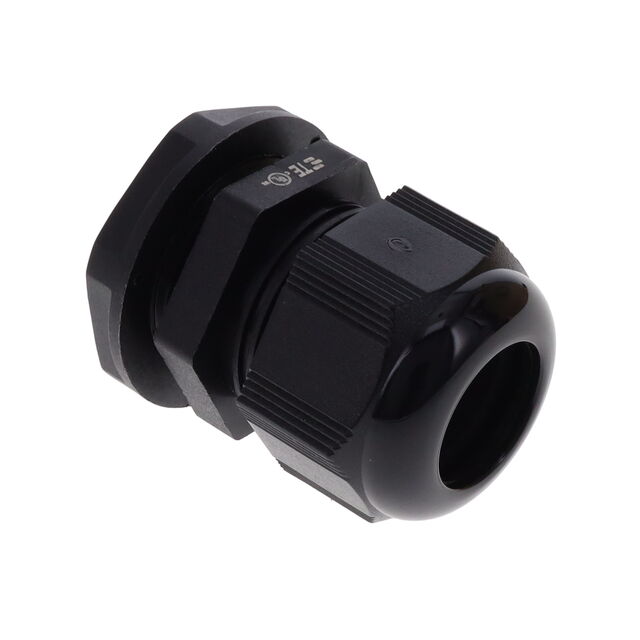

EP-SGL-PG21-BL-B
ActiveTE Connectivity Raychem Cable Protection
CABLE GLAND 13-18.01MM PG21
Deep-Dive with AI
Search across all available documentation for this part.
EP-SGL-PG21-BL-B
ActiveTE Connectivity Raychem Cable Protection
CABLE GLAND 13-18.01MM PG21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EP-SGL-PG21-BL-B |
|---|---|
| Color | Black |
| Includes | Seal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.709 in |
| Outside Cable Diameter (Max) [Max] [diameter] | 18.01 mm |
| Outside Cable Diameter (Min) | 13 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.512 in |
| Thread Length | 0.433 in |
| Thread Length | 11 mm |
| Thread Size | PG21 |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.20 | |
| 10 | $ 4.72 | |||
| 25 | $ 4.47 | |||
| 50 | $ 4.37 | |||
| 100 | $ 4.16 | |||
| 250 | $ 3.64 | |||
| 500 | $ 3.53 | |||
| 1000 | $ 3.01 | |||
| 2500 | $ 2.81 | |||
Description
General part information
EP-SGL-PG21 Series
Cable Gland Polyamide (PA6), Nylon 6 PG21 Black
