A1000.1/8NPT.040

Active

American Electrical Inc.

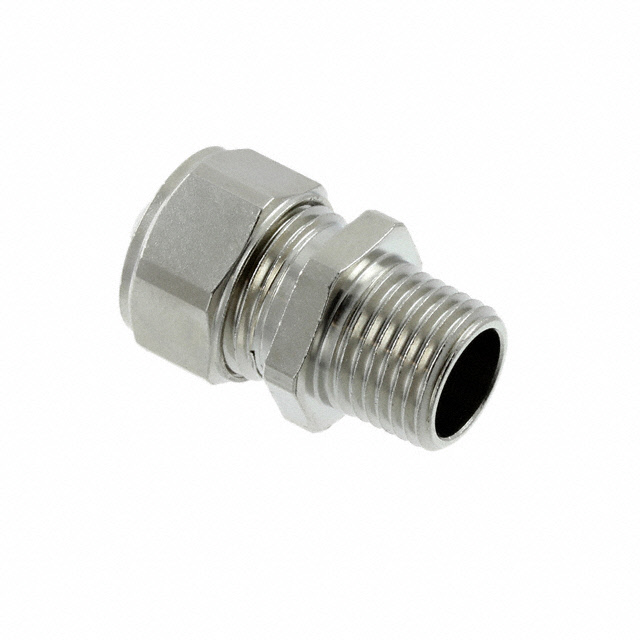

CABLE GLAND 3-4MM 1/8" NPT BRASS

Search across all available documentation for this part.

Active

American Electrical Inc.

CABLE GLAND 3-4MM 1/8" NPT BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1000.1/8NPT.040	1000.1/8 Series

Color	Silver	Silver
Includes	Seal	Seal
Ingress Protection	IP68, IP69K	IP68, IP69K
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	4 mm	4 - 6 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.157 "	0.157 - 0.236 in
Outside Cable Diameter (Min)	-	0.157 in
Outside Cable Diameter (Min)	-	4 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in	0.118 in
Thread Length	8 mm	8 mm
Thread Length	0.315 in	0.315 in
Thread Size	1/8" NPT	1/8" NPT
Type	Cable Gland	Cable Gland

CABLE GLAND 4-6MM 1/8" NPT BRASS

Part	Thread Length	Thread Length	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Ingress Protection	Color	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
American Electrical Inc. A1000.1/8NPT.060	8 mm	0.315 in	Brass, Nickel Plated	0.157 in	4 mm	1/8" NPT	IP68, IP69K	Silver	Seal	100 °C	-40 °C	Cable Gland	0.236 in	6 mm
American Electrical Inc. A1000.1/8NPT.040	8 mm	0.315 in	Brass, Nickel Plated			1/8" NPT	IP68, IP69K	Silver	Seal	100 °C	-40 °C	Cable Gland	0.157 "	4 mm	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 9.36

General part information

Cable Gland Brass, Nickel Plated 1/8" NPT Silver
