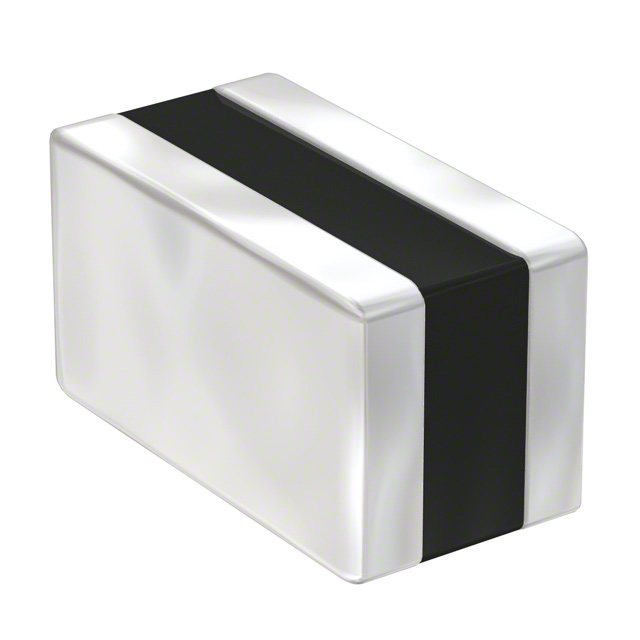

AWK107C7225MV-T

TAIYO YUDEN

CAP, MLCC, 0306, 4V, X7S, 2.2UF,20%, T&R ROHS COMPLIANT: YES

Search across all available documentation for this part.

TAIYO YUDEN

CAP, MLCC, 0306, 4V, X7S, 2.2UF,20%, T&R ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

CAP, MLCC, 0306, 4V, X7S, 2.2UF,20%, T&R ROHS COMPLIANT: YES

Part	Package / Case	Package / Case	Mounting Type	Voltage - Rated	Temperature Coefficient	Features	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max) [Max]	Thickness (Max) [Max]
TAIYO YUDEN AWK107C7225MV-T	0816 Metric	0306	MLCC, Surface Mount	4 V	X7S	Low ESL (Reverse Geometry)	2.2 µF	-55 °C	125 °C	20 %	Bypass, Decoupling	0.031 in	1.6 mm	0.8 mm	0.063 in	0.022 in	0.55 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µF ±20% 4V Ceramic Capacitor X7S 0306 (0816 Metric)
