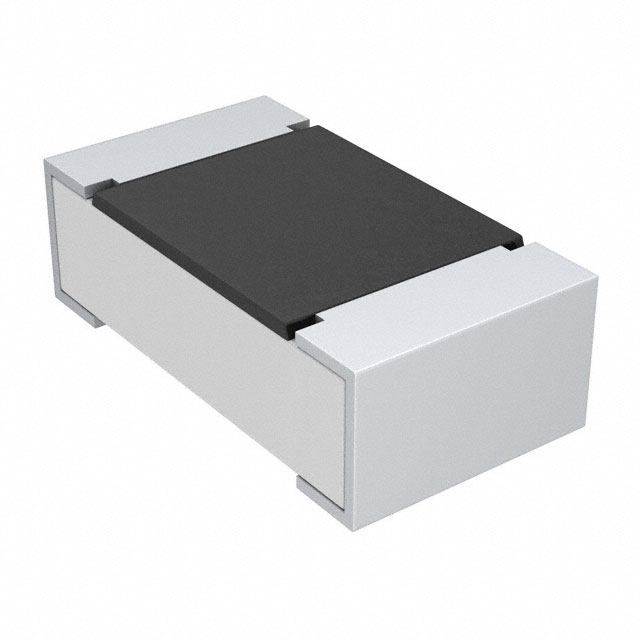

CRCW060311R8FKEBC

Active

Vishay Dale

RES 11.8 OHM 1% 1/10W 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CRCW060311R8FKEBC

Active

Vishay Dale

RES 11.8 OHM 1% 1/10W 0603

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRCW060311R8FKEBC	CRCW0603 Series

Composition	Thick Film	Thick Film
Features	-	Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max) [Max] [z]	0.022 in	0.02 - 0.022 in
Height - Seated (Max) [Max] [z]	0.55 mm	0.5 - 0.55 mm
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Power (Watts)	0.1 W	0.1 - 0.333 W
Power (Watts)	0.1 W	0.1 - 0.3333333333333333 W
Ratings	-	AEC-Q200
Resistance	11.8 Ohms	0 - 750000 kOhms
Size / Dimension [x]	0.063 in	0.061 - 0.063 in
Size / Dimension [x]	1.6 mm	1.55 - 1.6 mm
Size / Dimension [y]	0.8 mm	0.8 - 0.85 mm
Size / Dimension [y]	0.031 in	0.031 - 0.033 in
Temperature Coefficient	100 ppm/°C	50 - 500 ppm/°C
Tolerance	1 %	1 - 10 %
Tolerance	-	Jumper

CRCW0603 Series

RES 4.99K OHM 1% 1/10W 0603

...

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Power (Watts)	Number of Terminations	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Tolerance	Composition	Temperature Coefficient	Features	Ratings
Vishay Dale CRCW06034K99FKEBC	0.022 in	0.55 mm	0.1 W	0.1 W	2	4.99 kOhms	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	1 %	Thick Film	100 ppm/°C
Vishay Dale CRCW0603560RJNEB	0.02 "	0.5 mm	0.1 W	0.1 W	2	560 Ohms	155 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	5 %	Thick Film	200 ppm/°C	Automotive AEC-Q200	AEC-Q200
Vishay Dale CRCW060344R2FKEAHP	0.022 in	0.55 mm	0.333 W	0.3333333333333333 W	2	44.2 Ohms	155 °C	-55 °C	0.85 mm	0.063 in	1.6 mm	0.033 in	0603 (1608 Metric)	1 %	Thick Film	100 ppm/°C	Automotive AEC-Q200, Pulse Withstanding	AEC-Q200
Vishay Dale CRCW060310M0FKEBC	0.022 in	0.55 mm	0.1 W	0.1 W	2	10 MOhms	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	1 %	Thick Film	100 ppm/°C
Vishay Dale CRCW0603825KFKEBC	0.022 in	0.55 mm	0.1 W	0.1 W	2	825 kOhms	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	1 %	Thick Film	100 ppm/°C
Vishay Dale CRCW0603732KFKEA	0.02 "	0.5 mm	0.1 W	0.1 W	2	732 kOhms	155 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	1 %	Thick Film	100 ppm/°C	Automotive AEC-Q200	AEC-Q200
Vishay Dale CRCW060371K5FKEC	0.02 "	0.5 mm	0.1 W	0.1 W	2	71.5 kOhms	155 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	1 %	Thick Film	100 ppm/°C	Automotive AEC-Q200	AEC-Q200
Vishay Dale CRCW0603226KFKEAHP	0.022 in	0.55 mm	0.333 W	0.3333333333333333 W	2	226 kOhms	155 °C	-55 °C	0.85 mm	0.063 in	1.6 mm	0.033 in	0603 (1608 Metric)	1 %	Thick Film	100 ppm/°C	Automotive AEC-Q200, Pulse Withstanding	AEC-Q200
Vishay Dale CRCW06038K25FHTAP	0.02 "	0.5 mm	0.1 W	0.1 W	2	8.25 kOhms	155 °C	-55 °C	0.85 mm	0.061 in	1.55 mm	0.033 in	0603 (1608 Metric)	1 %	Thick Film	50 ppm/°C	Automotive AEC-Q200	AEC-Q200
Vishay Dale CRCW0603560KJNEAC	0.022 in	0.55 mm	0.1 W	0.1 W	2	560 kOhms	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	5 %	Thick Film	200 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	60000	$ 0.00

Description

General part information

CRCW0603 Series

11.8 Ohms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thick Film
