120956-1
ActiveTE Connectivity AMP Connectors

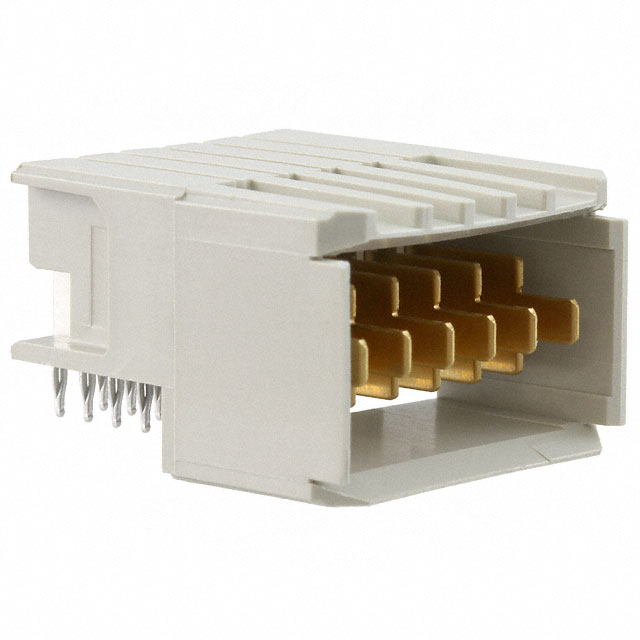

CONN HEADER BLADE PWR 6P EDGE MT
Deep-Dive with AI
Search across all available documentation for this part.
120956-1
ActiveTE Connectivity AMP Connectors
CONN HEADER BLADE PWR 6P EDGE MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 120956-1 | 120956 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Style | Blade Power | Blade Power |
| Connector Type | Male Blades, Header | Male Blades, Header |
| Contact Finish | Gold, Gold-Palladium | Gold, Gold-Palladium |
| Contact Layout, Typical | 6 Power | 6 Power |
| Features | Board Guide | Board Guide |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge |
| Number of Positions | 6 | 6 |
| Number of Positions Loaded | All | All |
| Termination | Press-Fit | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.34 | |
| 10 | $ 11.05 | |||
| 25 | $ 10.26 | |||
| 50 | $ 9.70 | |||
| 100 | $ 9.17 | |||
| 250 | $ 9.09 | |||
120956 Series
CONN HEADER BLADE PWR 6P EDGE MT
| Part | Termination | Connector Type | Number of Positions | Connector Style | Contact Layout, Typical | Mounting Type | Features | Number of Positions Loaded | Color | Contact Finish | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 120956-2 | Press-Fit | Header, Male Blades | 6 | Blade Power | 6 Power | Board Edge, Right Angle, Through Hole | Board Guide | All | Gray | Gold, Gold-Palladium | UL94 V-0 |
TE Connectivity AMP Connectors 120956-1 | Press-Fit | Header, Male Blades | 6 | Blade Power | 6 Power | Board Edge, Right Angle, Through Hole | Board Guide | All | Gray | Gold, Gold-Palladium | UL94 V-0 |
Description
General part information
120956 Series
6 Connector Header, Male Blades Board Edge, Through Hole, Right Angle Gray Blade Power
Documents
Technical documentation and resources
No documents available
