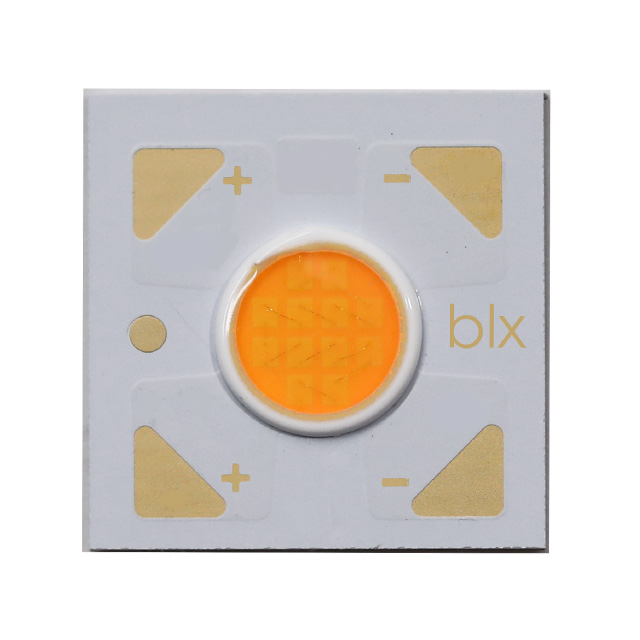

BXRH-35S0601-A-73

Active

BRIDGELUX

LED COB V4HD THRIVE WHT SQ 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRH-35S0601-A-73

Active

BRIDGELUX

LED COB V4HD THRIVE WHT SQ 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	600	$ 1.24

Description

General part information

BXRH-35 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V4 HD Thrive™ Array White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRH-35S0601-A-73	BXRH-35 Series

CCT (K)	3500 K	3500 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	98	80 - 98
Current - Max [Max]	240 mA	1.05 - 960 mA
Current - Test	175 mA	1 - 750 mA
Height [z]	1.63 mm	1.63 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	4.5 mm	3.8 - 9.5 mm
Lumens/Watt @ Current - Test	97 lm/W	84 - 145 lm/W
Luminous Flux @ Current/Temperature	618 lm	299 - 3715 lm
Size / Dimension [x]	12.5 mm	12.5 - 19 mm
Size / Dimension [y]	12.5 mm	12.5 - 19 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	112 - 120 °
Voltage - Forward (Vf) (Typ)	36.4 V	17.6 - 36.6 V

BXRH-35 Series

LED COB V4 HD WARM WHT SQU 3500K

Part	Configuration	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Current - Test	Color	Type	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Height [z]	Lens Type	Viewing Angle	Light Emitting Surface (LES) [diameter]	Size / Dimension [x]	Size / Dimension [y]	Temperature - Test	CCT (K)
BRIDGELUX BXRH-35G0600-A-73	Square	35.4 V	240 mA	175 mA	Warm, White	Chip On Board (COB)	579 lm	90	93 lm/W	1.63 mm	Flat	120 °	5.2 mm	12.5 mm	12.5 mm	85 °C	3500 K
BRIDGELUX BXRH-35G0300-A-83	Square	35.2 V	180 mA	80 mA	Warm, White	Chip On Board (COB)	333 lm	90	118 lm/W	1.63 mm	Flat	120 °	3.8 mm	12.5 mm	12.5 mm		3500 K
BRIDGELUX BXRH-35H1000-G-83	Square	18.3 V	1.2 A		Warm, White	Chip On Board (COB)	1358 lm	97	106 lm/W	1.63 mm	Flat	120 °	6.6 mm				3500 K
BRIDGELUX BXRH-35H0600-A-83	Square	36.6 V	300 mA	175 mA	Warm, White	Chip On Board (COB)	656 lm	97	102 lm/W	1.63 mm	Flat	120 °	4.8 mm	12.5 mm	12.5 mm		3500 K
BRIDGELUX BXRH-35G1000-B-83	Square	36.6 V	600 mA	350 mA	Warm, White	Chip On Board (COB)	1512 lm	90	118 lm/W	1.63 mm	Flat	120 °	6.6 mm				3500 K
BRIDGELUX BXRH-35H0600-B-83	Square	18.3 V	600 mA	350 mA	Warm, White	Chip On Board (COB)	656 lm	97	102 lm/W	1.63 mm	Flat	120 °	4.8 mm	12.5 mm	12.5 mm		3500 K
BRIDGELUX BXRH-35G0300-B-83	Square	17.6 V	360 mA		Warm, White	Chip On Board (COB)	333 lm	90	118 lm/W	1.63 mm	Flat	120 °	3.8 mm	12.5 mm	12.5 mm		3500 K
BRIDGELUX BXRH-35G0600-A-83	Square	36.6 V	300 mA	175 mA	Warm, White	Chip On Board (COB)		90	114 lm/W	1.63 mm	Flat	120 °	4.8 mm	12.5 mm	12.5 mm		3500 K
BRIDGELUX BXRH-35H1000-B-83	Square	36.6 V	600 mA	350 mA	Warm, White	Chip On Board (COB)	1358 lm	97	106 lm/W	1.63 mm	Flat	120 °	6.6 mm				3500 K
BRIDGELUX BXRH-35S0601-A-73	Square	36.4 V	240 mA	175 mA	Warm, White	Chip On Board (COB)	618 lm	98	97 lm/W	1.63 mm	Flat	120 °	4.5 mm	12.5 mm	12.5 mm		3500 K
