02K118-K00S3

Active

Rosenberger

COAX ADAPT SMP MINITO RPC-2.92

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT SMP MINITO RPC-2.92

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02K118-K00S3	02K118 Series

Adapter Series	Mini to RPC-2.92, SMP	Mini to RPC-2.92, SMP
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Finish	Gold; Passivated	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	2.92 mm	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	SMP Mini Jack, Female Socket	SMP Mini Jack, Female Socket, Male Pin, SMP Mini Plug
Dielectric Material	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	Polystyrene (PS), Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On	Threaded, Snap-On
Features	-	Full Detent
Frequency - Max [Max]	40 GHz	40 GHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.32 dB
Mating Cycles	-	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Straight	Straight

COAX ADAPT SMP MINITO RPC-2.92

Part	Impedance	Adapter Type	Conversion Type	Body Finish	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Dielectric Material	Center Gender	Center Contact Material	Center Contact Plating	Frequency - Max [Max]	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Style	Adapter Series	Mounting Type	Features	Insertion Loss	Mating Cycles
Rosenberger 02K118-K00S3	50 Ohms	Jack to Jack	Between Series	Gold; Passivated	Beryllium Copper, Stainless Steel	85 °C	-40 °C	Snap-On, Threaded	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	Female to Female	Beryllium Copper	Gold	40 GHz	Female Socket, SMP Mini Jack	2.92 mm	Jack, Female Socket, OS-2.9	Straight	Mini to RPC-2.92, SMP	Free Hanging (In-Line)
Rosenberger 02K118-S00S3	50 Ohms	Plug to Jack	Between Series		Stainless Steel	85 °C	-40 °C	Snap-On, Threaded	Polystyrene (PS), Polytetrafluoroethylene (PTFE)		Beryllium Copper	Gold	40 GHz	Male Pin, SMP Mini Plug	2.92 mm	Jack, Female Socket, OS-2.9	Straight	Mini to RPC-2.92, SMP	Free Hanging (In-Line)	Full Detent	0.32 dB	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

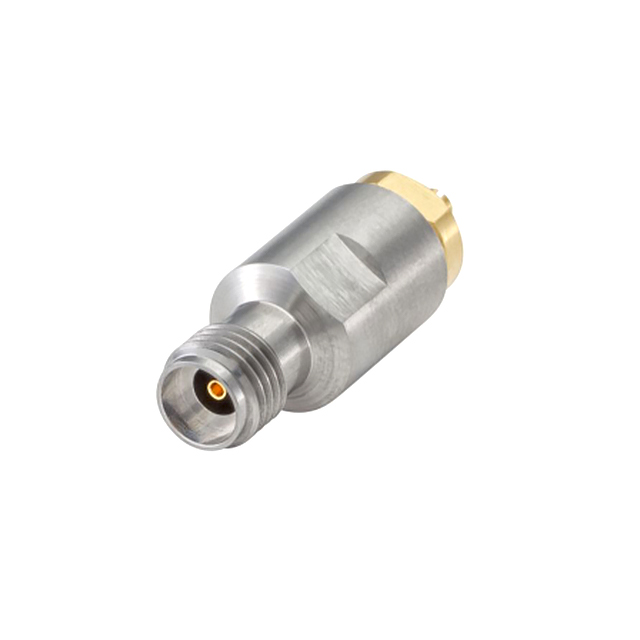

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To SMP Mini Jack, Female Socket 50 Ohms
