Description
General part information
EPC9004

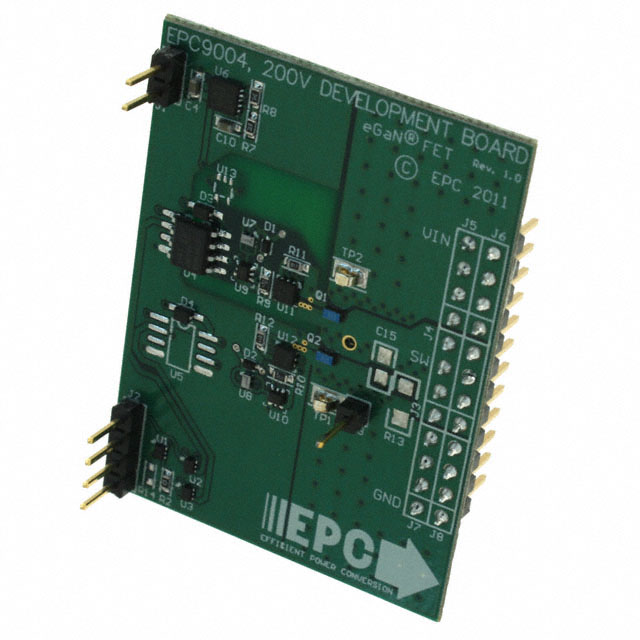

EPC2012 Half H-Bridge Driver (External FET) Power Management Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC9004 |
|---|---|
| Contents | Board |
| Embedded | No |
| Function | Half H-Bridge Driver (External FET) |
| Primary Attributes | 3A Max Output GaNFET Capability, 200V, 200V, 3A Max Output GaNFET Capability |
| Secondary Attributes (GaNFET Driver Circuit Uses) - Maximum | 12 V |
| Secondary Attributes (GaNFET Driver Circuit Uses) - Minimum | 7 V |
| Supplied Contents | Board(s) |
| Supply Voltage (Maximum) | 12 V |
| Supply Voltage (Minimum) | 7 V |
| Type | Power Management |
| Utilized IC / Part | EPC2012 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
