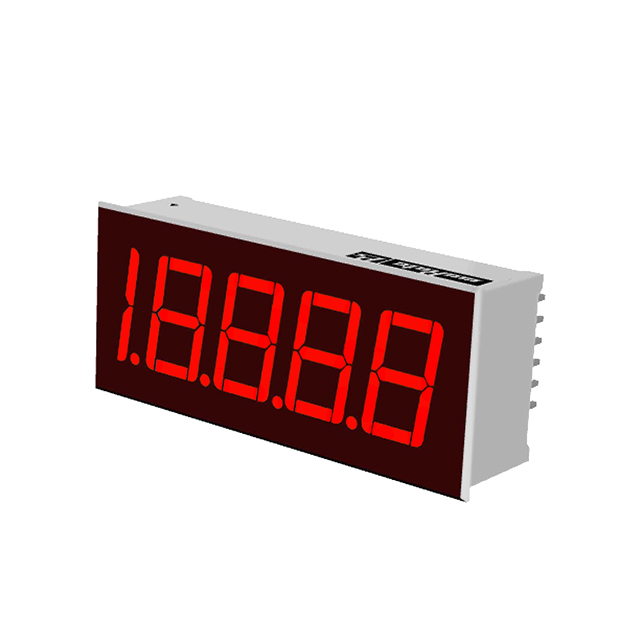

DSD-40BCD-RS-C

Active

Murata Power Solutions Inc.

DISP 7SEG 0.52" 4.5DIG RED MOD

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DISP 7SEG 0.52" 4.5DIG RED MOD

Technical Specifications

Parameters and characteristics commom to parts in this series

DISP 7SEG 0.52" 4.5DIG GRN MOD

Part	Color	Current - Test	Wavelength - Peak	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Display Type	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)
Murata Power Solutions Inc. DSD-40BCD-GS-C	Green	35 mA	565 nm	4.5	13.21 mm	0.52 in	7-Segment	Module	0.56 in	0.92 "	2.17 in	55.12 mm	23.37 mm	14.22 mm
Murata Power Solutions Inc. DSD-40BCD-RL-C	Red	35 mA	630 nm	4.5	13.21 mm	0.52 in	7-Segment	Module	0.56 in	0.92 "	2.17 in	55.12 mm	23.37 mm	14.22 mm
Murata Power Solutions Inc. DSD-40BCD-RS-C	Red	85 mA	635 nm	4.5	13.2 mm	0.52 in	7-Segment	Module	0.56 in	0.92 "	2.17 in	55.12 mm	23.37 mm	14.22 mm	175 mW	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Display Modules - LED Character and Numeric Red 7-Segment 4.5 Character 5V 85mA 0.920" H x 2.170" W x 0.560" D (23.37mm x 55.12mm x 14.22mm) Module

Technical documentation and resources
