EXN-23353-GDP

Active

BUD INDUSTRIES

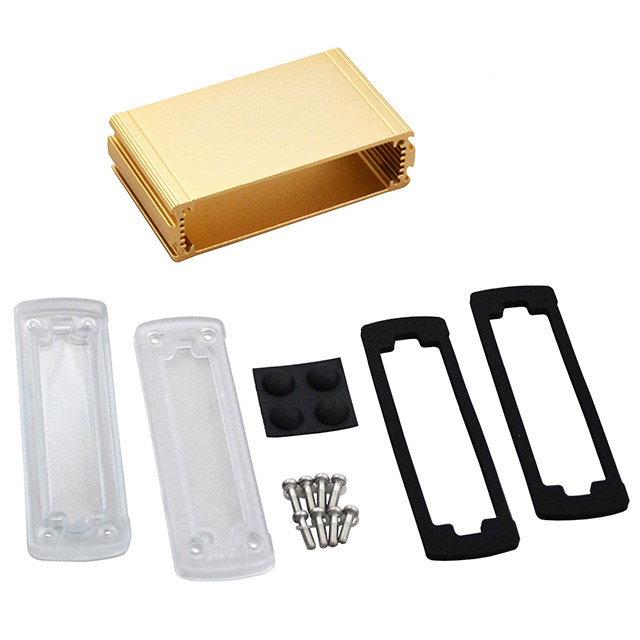

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 35.2 MM, 69 MM, 113.7 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 35.2 MM, 69 MM, 113.7 MM, IP66

Technical Specifications

Parameters and characteristics for this part

Specification	EXN-23353-GDP

Area (L x W)	79 cm˛
Area (L x W)	12.3 in˛
Color	Clear, Gold
Container Type	Box
Design	End Panel(s)
Features	Card Guides, Sealing Gaskets
Height [z]	1.386 in
Height [z]	35.2 mm
Material	Metal, Polycarbonate Panels, Aluminum with Plastic
Material Flammability Rating	UL94 V-0
Ratings	IP66
Size / Dimension [x]	4.476 in
Size / Dimension [x]	113.7 mm
Size / Dimension [y]	69 mm
Size / Dimension [y]	2.717 "
Thickness	0.091 in
Thickness	2.3 mm
Weight	131.54 g
Weight	0.29 lb

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 35.2 MM, 69 MM, 113.7 MM, IP66

Part	Color	Ratings	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Weight	Weight	Material Flammability Rating	Thickness	Thickness	Design	Material	Area (L x W)	Area (L x W)	Container Type
BUD INDUSTRIES EXN-23353-GDP	Clear, Gold	IP66	Card Guides, Sealing Gaskets	69 mm	4.476 in	113.7 mm	2.717 "	1.386 in	35.2 mm	131.54 g	0.29 lb	UL94 V-0	0.091 in	2.3 mm	End Panel(s)	Aluminum with Plastic, Metal, Polycarbonate Panels	79 cm˛	12.3 in˛	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Box Metal, Aluminum with Plastic, Polycarbonate Panels Clear, Gold End Panel(s) 4.476" L x 2.717" W (113.70mm x 69.00mm) X 1.386" (35.20mm)
