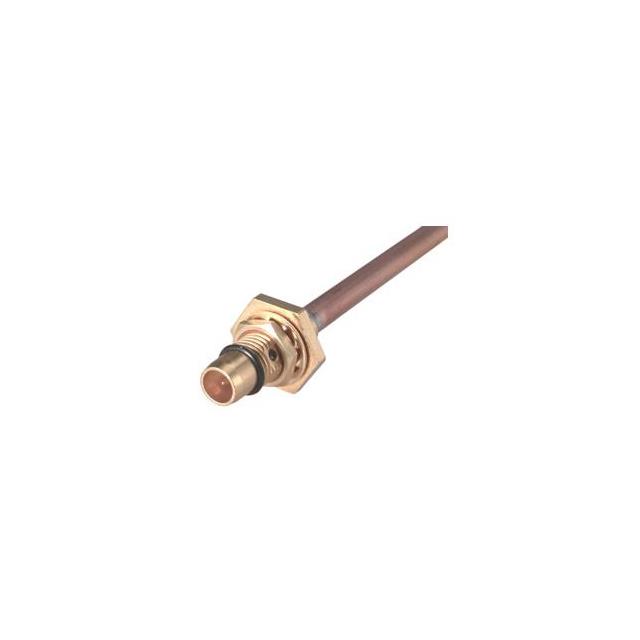

14_BMA-50-3-2/111_NE
ActiveHuber+Suhner, Inc.
14_BMA-50-3-2/111_NE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
14_BMA-50-3-2/111_NE
ActiveHuber+Suhner, Inc.
14_BMA-50-3-2/111_NE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 14_BMA-50-3-2/111_NE |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | RG-141 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 98.93 | |
Description
General part information
14_BMA-50-3-2/111_NE
BMA Connector Plug, Male Pin 50 Ohms Panel Mount Crimp
Documents
Technical documentation and resources
