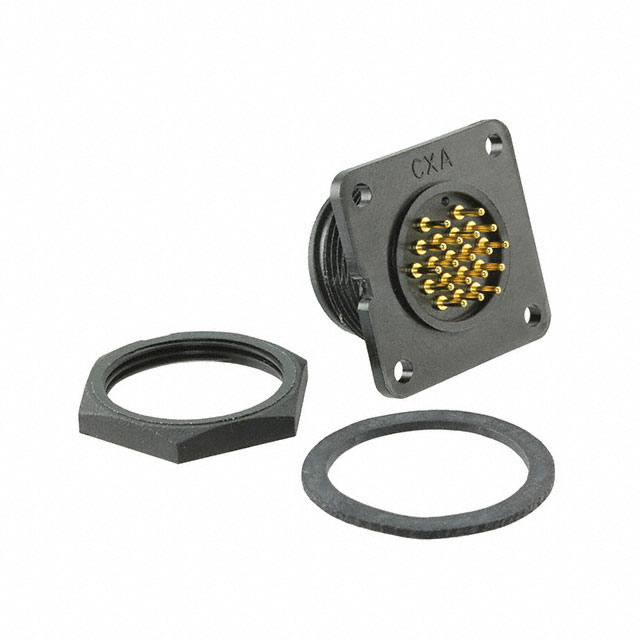

14281-18SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 18POS GOLD SLDR

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 18POS GOLD SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14281-18SG-300	14281-18S Series

Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	Weathertight	Weathertight
Mounting Feature	Bulkhead - Front Side Nut, Flange	Bulkhead - Front Side Nut, Flange
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	18	18
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	600 V	600 V

CONN RCPT FMALE 18POS GOLD SLDR

Part	Connector Type	Color	Mounting Type	Primary Material	Ingress Protection	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions	Shielding	Mounting Feature	Contact Material	Fastening Type	Termination	Orientation
Conxall/Switchcraft 14281-18SG-300	Receptacle, Female Sockets	Black	Panel Mount, Through Hole	Plastic	Weathertight	Gold	-40 °C	115 °C	600 V	18	Unshielded	Bulkhead - Front Side Nut, Flange	Brass	Bayonet Lock	Solder	Keyed
Conxall/Switchcraft 14281-18SGT-300	Receptacle, Female Sockets	Black	Panel Mount, Through Hole	Plastic	Weathertight	Gold	-40 °C	115 °C	600 V	18	Unshielded	Bulkhead - Front Side Nut, Flange	Brass		Solder	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Female Sockets Solder
