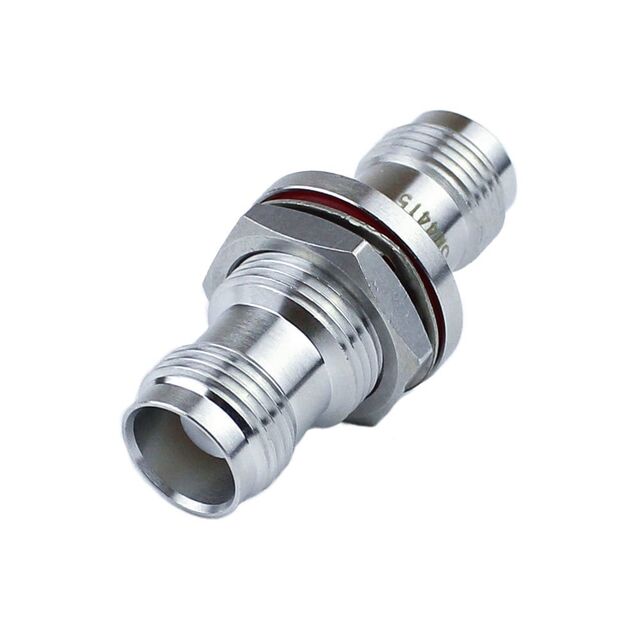

SM4415
ActiveFairview Microwave
ADAPT JACK-JACK TNC 1.2 VSWR
SM4415
ActiveFairview Microwave
ADAPT JACK-JACK TNC 1.2 VSWR
Description
General part information
SM4415
Adapter Coaxial Connector TNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4415 |
|---|---|
| Adapter Series | TNC to TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | TNC Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Straight |
