FMAD1035
ActiveFairview Microwave

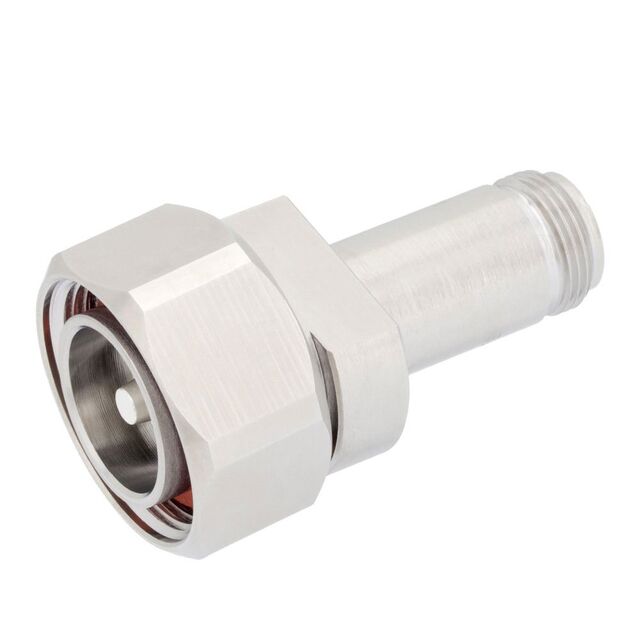

RF / COAXIAL ADAPTER, LOW PIM, N, JACK, 7/16 DIN, PLUG, STRAIGHT ADAPTER, 50 OHM
FMAD1035
ActiveFairview Microwave
RF / COAXIAL ADAPTER, LOW PIM, N, JACK, 7/16 DIN, PLUG, STRAIGHT ADAPTER, 50 OHM
Description
General part information
FMAD1035
Adapter Coaxial Connector N Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1035 |
|---|---|
| Adapter Series | N to 7/16 DIN |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper, Brass |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | 7/16 Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 8 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
