1737C SL001

Active

ALPHA WIRE

CABLE 3COND 22AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 22AWG SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1737C SL001	1737C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	5.06 mm	5.06 mm
Jacket (Insulation) Diameter [diameter]	0.199 in	0.199 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	100 - 500 '
Length	-	30.5 - 152.4 m
Number of Conductors	3	3
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	75 %	75 %
Shield Material	Copper, Bare	Copper, Bare
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 3 CONDUCTOR, 22 AWG, 500 FT, 152.4 M

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Material	Voltage	Cable Type	Shield Coverage	Usage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Number of Conductors	Length	Length
ALPHA WIRE 1737C SL002	0.02 in	0.508 mm	22 AWG	7	30 AWG	Slate	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	5.06 mm	0.199 in	Braid	Copper, Tinned	300 V	Multi-Conductor	75 %	Communication, Control	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Copper, Bare	3
ALPHA WIRE 1737C SL005	0.02 in	0.508 mm	22 AWG	7	30 AWG	Slate	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	5.06 mm	0.199 in	Braid	Copper, Tinned	300 V	Multi-Conductor	75 %	Communication, Control	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Copper, Bare	3
ALPHA WIRE 1737C SL001	0.02 in	0.508 mm	22 AWG	7	30 AWG	Slate	Poly-Vinyl Chloride (PVC)			5.06 mm	0.199 in	Braid	Copper, Tinned	300 V	Multi-Conductor	75 %	Communication, Control	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Copper, Bare	3	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.26

General part information

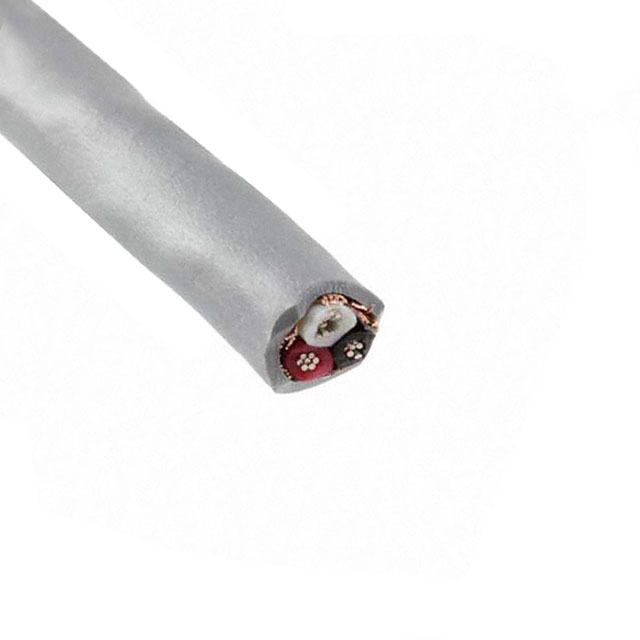

3 Conductor Multi-Conductor Cable Slate 22 AWG Braid 1000.0' (304.8m)
