CHM-27-65-80-36-AA00-F2-5

Active

Luminus Devices Inc.

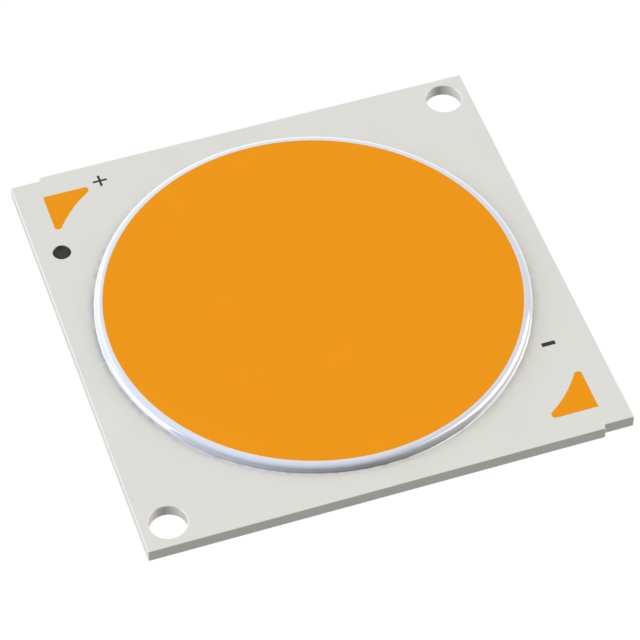

LED COB CHM27 COOL WHT SQU 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CHM-27-65-80-36-AA00-F2-5

Active

Luminus Devices Inc.

LED COB CHM27 COOL WHT SQU 6500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 18.50

Description

General part information

CHM-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) CHM-27 White, Cool Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CHM-27-65-80-36-AA00-F2-5	CHM-27 Series

CCT (K)	6500 K	2700 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Cool, White	White, Warm, Neutral, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	80	70 - 95
Current - Test	2.7 A	2.7 A
Height [z]	1.37 mm	1.37 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	26.5 mm	26.5 mm
Lumens/Watt @ Current - Test	119 lm/W	76 - 125 lm/W
Luminous Flux @ Current/Temperature	11200 lm	7140 - 11810 lm
Size / Dimension [x]	31.5 mm	31.5 mm
Size / Dimension [y]	31.5 mm	31.5 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	35 V	35 V

CHM-27 Series

LED COB CHM27 WARM WHT SQU 2700K

Part	Configuration	Viewing Angle	Light Emitting Surface (LES) [diameter]	Height [z]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Type	Lumens/Watt @ Current - Test	Color	Current - Test	Luminous Flux @ Current/Temperature	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Lens Type	CRI (Color Rendering Index)	CCT (K)
Luminus Devices Inc. CHM-27-27-90-36-AA00-F2-3	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)	80 lm/W	Warm, White	2.7 A	7585 lm	2700 K	31.5 mm	31.5 mm	Flat	90
Luminus Devices Inc. CHM-27-40-90-36-AA00-F2-3	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)	100 lm/W	Neutral, White	2.7 A	9470 lm	4000 K	31.5 mm	31.5 mm	Flat	90
Luminus Devices Inc. CHM-27-50-80-36-AA00-F2-5	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)	119 lm/W	Cool, White	2.7 A	11250 lm	5000 K	31.5 mm	31.5 mm	Flat	80	5-Step MacAdam Ellipse
Luminus Devices Inc. CHM-27-50-80-36-AB00-F2-5	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)	121 lm/W	Cool, White	2.7 A	11430 lm	5000 K	31.5 mm	31.5 mm	Flat	80	5-Step MacAdam Ellipse
Luminus Devices Inc. CHM-27-40-90-36-AB00-F2-3	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)	100 lm/W	Neutral, White	2.7 A	9470 lm	4000 K	31.5 mm	31.5 mm	Flat	90
Luminus Devices Inc. CHM-27-27-90-36-AB00-F2-3	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)	80 lm/W	Warm, White	2.7 A	7585 lm	2700 K	31.5 mm	31.5 mm	Flat	90
Luminus Devices Inc. CHM-27-65-70-36-AA00-F2-5	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)		Cool, White	2.7 A	11760 lm	6500 K	31.5 mm	31.5 mm	Flat	70
Luminus Devices Inc. CHM-27-50-70-36-AB00-F2-3	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)	125 lm/W	Cool, White	2.7 A	11810 lm		31.5 mm	31.5 mm	Flat	70
Luminus Devices Inc. CHM-27-65-70-36-AB00-F2-5	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)		Cool, White	2.7 A	11760 lm	6500 K	31.5 mm	31.5 mm	Flat	70
Luminus Devices Inc. CHM-27-65-70-36-AB00-F2-3	Square	120 °	26.5 mm	1.37 mm	35 V	85 °C	Chip On Board (COB)		Cool, White	2.7 A	11760 lm	6500 K	31.5 mm	31.5 mm	Flat	70
