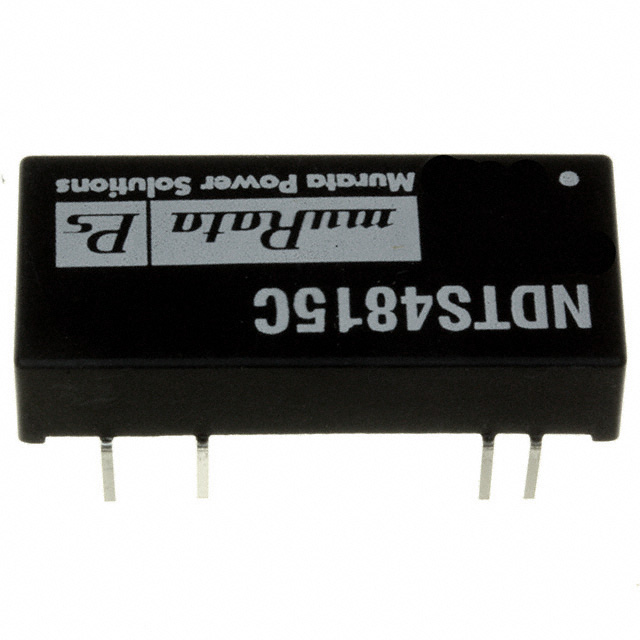

NDTS4815C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDTS4815C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NDTS4815C | NDTS48 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA | 200 - 909 mA |
| Efficiency | 80 % | 71 - 80 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 24-DIP Module (600 mil, 8 Leads) | 24-DIP Module (600 mil, 8 Leads) |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 1.27 in | 1.27 in |
| Size / Dimension [x] | 32.3 mm | 32.3 mm |
| Size / Dimension [y] | 0.58 " | 0.58 " |
| Size / Dimension [y] | 14.7 mm | 14.7 mm |
| Size / Dimension [z] | 6.9 mm | 6.9 mm |
| Size / Dimension [z] | 0.27 " | 0.27 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V | 72 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 15 V | 3.3 - 15 V |
NDTS48 Series
DC DC CONVERTER 3.3V 3W
| Part | Package / Case | Number of Outputs | Voltage - Isolation | Current - Output (Max) [Max] | Type | Applications | Power (Watts) | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Input (Max) [Max] | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NDTS4803C | 24-DIP Module (600 mil, 8 Leads) | 1 | 1000 V | 909 mA | Isolated Module | ITE (Commercial) | 3 W | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | Through Hole | 36 V | 85 °C | -40 °C | 71 % | 72 V | 3.3 V |
Murata Power Solutions Inc. NDTS4815C | 24-DIP Module (600 mil, 8 Leads) | 1 | 1000 V | 200 mA | Isolated Module | ITE (Commercial) | 3 W | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | Through Hole | 36 V | 85 °C | -40 °C | 80 % | 72 V | 15 V |
Murata Power Solutions Inc. NDTS4805C | 24-DIP Module (600 mil, 8 Leads) | 1 | 1000 V | 600 mA | Isolated Module | ITE (Commercial) | 3 W | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | Through Hole | 36 V | 85 °C | -40 °C | 75 % | 72 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NDTS48 Series
Isolated Module DC DC Converter 1 Output 15V 200mA 36V - 72V Input
