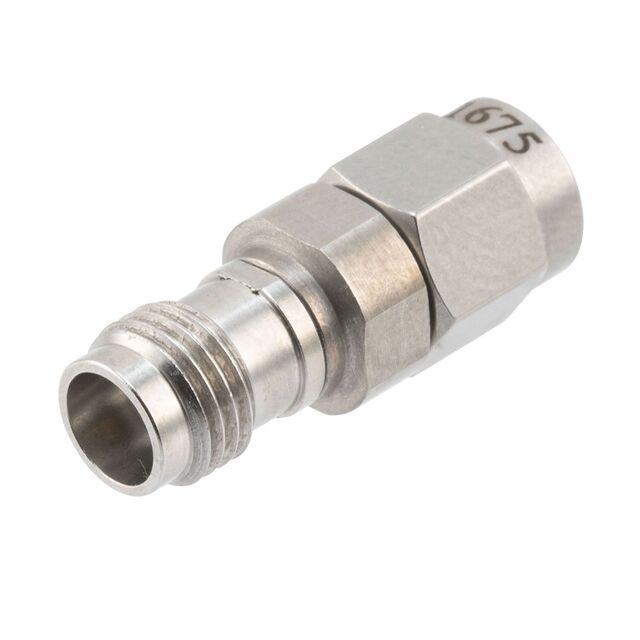

FMAD1675
ActiveFairview Microwave
ADAPT PLUG-JACK 3.5MM SS 1.25 VS
FMAD1675
ActiveFairview Microwave
ADAPT PLUG-JACK 3.5MM SS 1.25 VS
Description
General part information
FMAD1675
Adapter Coaxial Connector 3.5mm Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1675 |
|---|---|
| Adapter Series Size | 3.5 mm, 2.4 mm |
| Adapter Type | Plug to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) Plug Size | 3.5 mm |
| Convert From (Adapter End) Type | Male Pin |
| Convert To (Adapter End) | (APC-2.4, OS-50) Plug, Male Pin |
| Convert To (Adapter End) Precision | 2.4 mm |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Frequency - Max | 34.5 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.24 dB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Straight |
