ASDM1-60.000MHZ-LR-T
ActiveAbracon LLC
MEMS OSC XO 60.0000MHZ LVCMOS
ASDM1-60.000MHZ-LR-T
ActiveAbracon LLC
MEMS OSC XO 60.0000MHZ LVCMOS
Description
General part information
ASDM1-60.000MHZ-LR-T

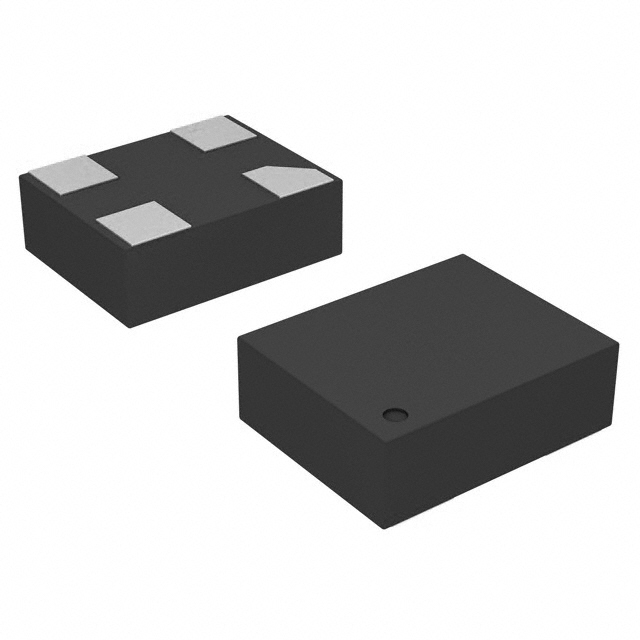

60 MHz XO (Standard) LVCMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASDM1-60.000MHZ-LR-T |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 15 µA |
| Current - Supply (Max) | 15 mA |
| Frequency | 60 MHz |
| Function | Standby (Power Down) |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.5 mm |
| Package Name | 4-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
