HV73V2BTTD3013D

Active

KOA Speer Electronics, Inc.

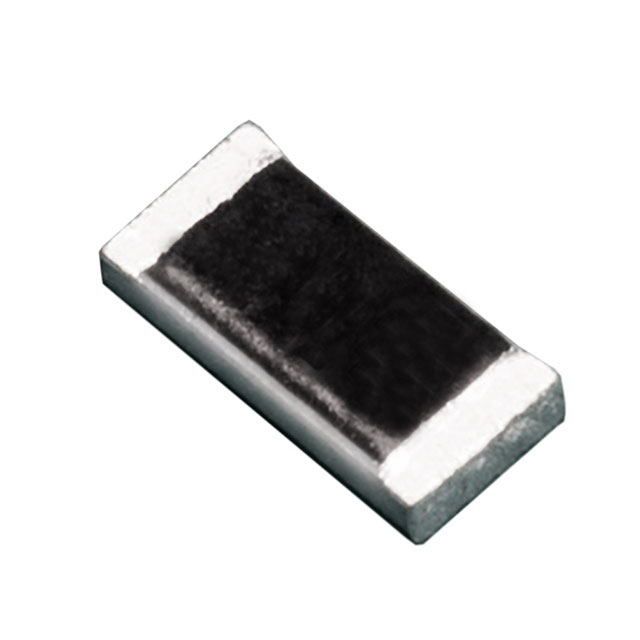

RES THICK FILM 1206 301K OHM 0.5% 0.33W(1/3W) ±100PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HV73V2BTTD3013D

Active

KOA Speer Electronics, Inc.

RES THICK FILM 1206 301K OHM 0.5% 0.33W(1/3W) ±100PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HV73V2BTTD3013D	HV73V2B Series

Composition	Thick Film	Thick Film
Features	Automotive AEC-Q200, High Voltage, Moisture Resistant	Automotive AEC-Q200, High Voltage, Moisture Resistant
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Power (Watts)	0.333 W	0.333 W
Power (Watts)	0.3333333333333333 W	0.3333333333333333 W
Ratings	AEC-Q200	AEC-Q200
Resistance	301 kOhms	1 - 750000 MOhms
Size / Dimension [x]	0.126 "	0.126 "
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	1206	1206
Temperature Coefficient	100 ppm/°C	100 - 200 ppm/°C
Tolerance	-	1 - 5 %

HV73V2B Series

RES 6.19M OHM 1% 1/3W 1206

...

Part	Supplier Device Package	Tolerance	Resistance	Composition	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations	Ratings	Power (Watts)	Power (Watts)	Temperature Coefficient
KOA Speer Electronics, Inc. HV73V2BTTD6194F	1206	1 %	6.19 MOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C
KOA Speer Electronics, Inc. HV73V2BTTD1603D	1206		160 kOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C
KOA Speer Electronics, Inc. HV73V2BTTD225J	1206	5 %	2.2 MOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C
KOA Speer Electronics, Inc. HV73V2BTTD4123F	1206	1 %	412 kOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C
KOA Speer Electronics, Inc. HV73V2BTTD4993F	1206	1 %	499 kOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C
KOA Speer Electronics, Inc. HV73V2BTTD684G	1206	2 %	680 kOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C
KOA Speer Electronics, Inc. HV73V2BTTD7504F	1206	1 %	7.5 MOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C
KOA Speer Electronics, Inc. HV73V2BTTD1023F	1206	1 %	102 kOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C
KOA Speer Electronics, Inc. HV73V2BTTD275J	1206	5 %	2.7 MOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C
KOA Speer Electronics, Inc. HV73V2BTTD7684F	1206	1 %	7.68 MOhms	Thick Film	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	Automotive AEC-Q200, High Voltage, Moisture Resistant	0.7 mm	0.028 in	155 °C	-55 °C	2	AEC-Q200	0.333 W	0.3333333333333333 W	100 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.12

Description

General part information

HV73V2B Series

301 kOhms ±0.5% 0.333W, 1/3W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, High Voltage, Moisture Resistant Thick Film
