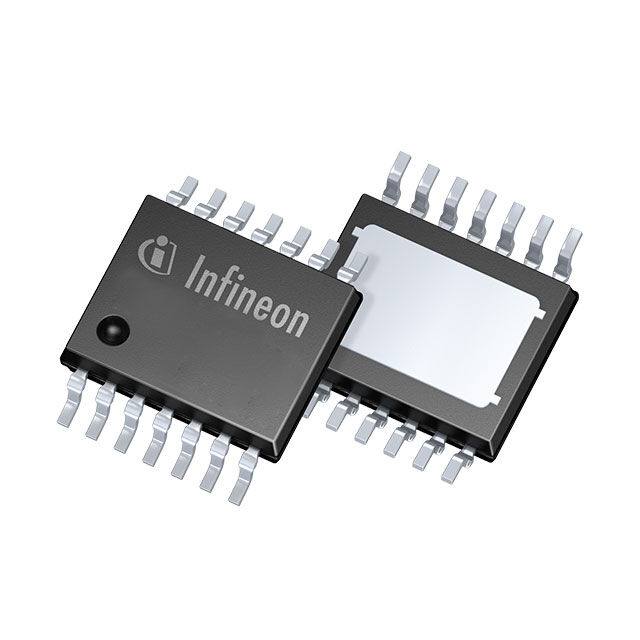

BTS70082EPAXUMA1
ActiveInfineon Technologies
THE BTS7008-2EPA IS A SMART HIGH-SIDE POWER SWITCH 8 MΩ DUAL CHANNEL, PROVIDING PROTECTION FUNCTIONS AND DIAGNOSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BTS70082EPAXUMA1
ActiveInfineon Technologies
THE BTS7008-2EPA IS A SMART HIGH-SIDE POWER SWITCH 8 MΩ DUAL CHANNEL, PROVIDING PROTECTION FUNCTIONS AND DIAGNOSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BTS70082EPAXUMA1 |
|---|---|
| Current - Output (Max) [Max] | 7.5 A |
| Fault Protection | Open Load Detect, Current Limiting (Fixed), Over Temperature, UVLO, Over Voltage |
| Grade | Automotive |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 0.154 in |
| Package / Case | 3.9 mm |
| Package / Case | 14-TSSOP |
| Qualification | AEC-Q100 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 9 mOhm |
| Supplier Device Package | PG-TSDSO-14-22 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 18 V |
| Voltage - Load [Min] | 6 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BTS7008 Series
Power Switch/Driver 1:1 N-Channel 7.5A PG-TSDSO-14-22
