CDR04BP272BJZRAT

Active

Vishay Vitramon

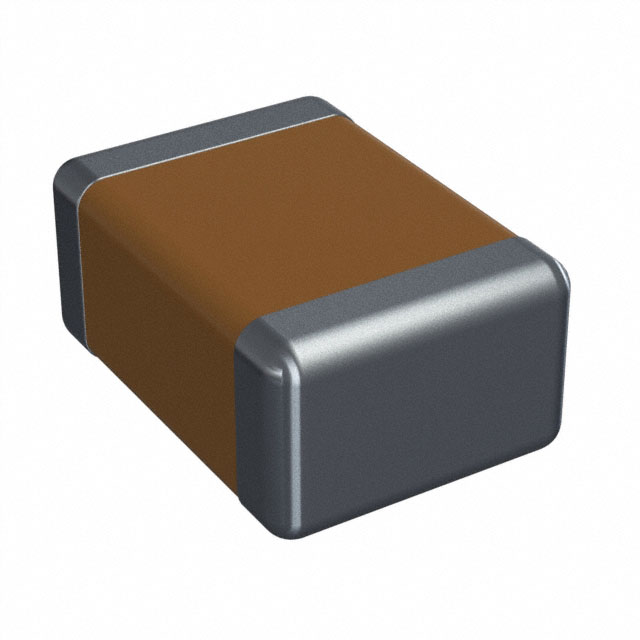

CAP CER 2700PF 100V 5% BP 1812

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDR04BP272BJZRAT

Active

Vishay Vitramon

CAP CER 2700PF 100V 5% BP 1812

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDR04BP272BJZRAT	CDR04 Series

Applications	High Reliability	High Reliability
Capacitance	2700 pF	0.056 - 100000 pF
Failure Rate	R (0.01%)	S (0.001%), R (0.01%), M (1%)
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1812 (4532 Metric)	1812 (4532 Metric)
Size / Dimension [x]	4.57 mm	4.57 mm
Size / Dimension [x]	0.18 "	0.18 "
Size / Dimension [y]	3.2 mm	3.2 mm
Size / Dimension [y]	0.126 "	0.126 "
Temperature Coefficient	BP	BP, BX
Thickness (Max) [Max]	0.08 in	0.08 in
Thickness (Max) [Max]	2.03 mm	2.03 mm
Tolerance	5 %	5 - 20 %
Voltage - Rated	100 V	50 - 100 V

CDR04 Series

CAP CER 2200PF 100V BP 1812

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Tolerance	Temperature Coefficient	Voltage - Rated	Capacitance	Package / Case	Failure Rate	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Vishay Vitramon CDR04BP222BJWSAT	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	5 %	BP	100 V	2200 pF	1812 (4532 Metric)	S (0.001%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "
Vishay Vitramon CDR04BP272BJZRAT	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	5 %	BP	100 V	2700 pF	1812 (4532 Metric)	R (0.01%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "
Vishay Vitramon CDR04BP332BKWSAB	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	10 %	BP	100 V	3300 pF	1812 (4532 Metric)	S (0.001%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "
Vishay Vitramon CDR04BX104AMWSAR	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	20 %	BX	50 VDC	100000 pF	1812 (4532 Metric)	S (0.001%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "
Vishay Vitramon CDR04BP182BJUSAT	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	5 %	BP	100 V	1800 pF	1812 (4532 Metric)	S (0.001%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "
Vishay Vitramon CDR04BX104AKZRAJ	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	10 %	BX	50 VDC	100000 pF	1812 (4532 Metric)	R (0.01%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "
Vishay Vitramon CDR04BX104AKMMAR	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	10 %	BX	50 VDC	100000 pF	1812 (4532 Metric)	M (1%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "
Vishay Vitramon CDR04BX104AKWSAT	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	10 %	BX	50 VDC	100000 pF	1812 (4532 Metric)	S (0.001%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "
Vishay Vitramon CDR04BX104AKWSAB	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	10 %	BX	50 VDC	100000 pF	1812 (4532 Metric)	S (0.001%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "
Vishay Vitramon CDR04BX104AMUMAT	-55 °C	125 °C	MLCC, Surface Mount	High Reliability	20 %	BX	50 VDC	100000 pF	1812 (4532 Metric)	M (1%)	0.08 in	2.03 mm	4.57 mm	0.18 "	3.2 mm	0.126 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CDR04 Series

2700 pF ±5% 100V Ceramic Capacitor BP 1812 (4532 Metric)
