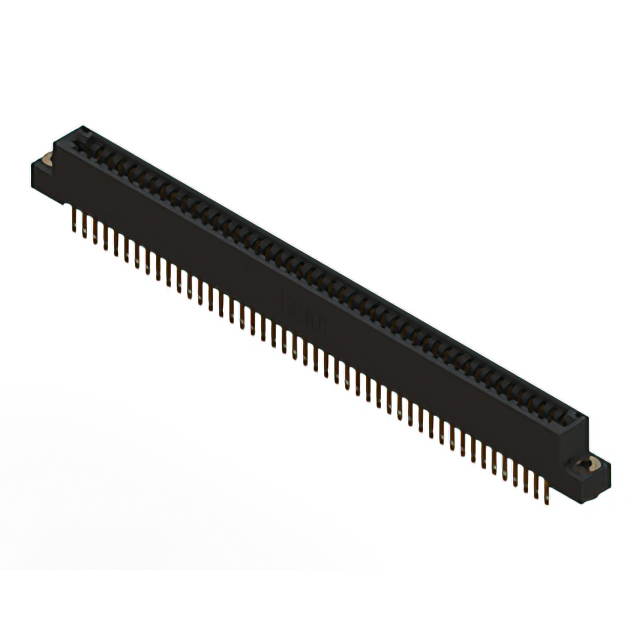

896-092-500-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 92POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-092-500-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 92POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 128.40

Description

General part information

896-092 Series

92 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-092-500-203	896-092 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Flange Feature	Floating Bobbin, Flush Mount	Flush Mount, Top Opening, Unthreaded, M3, Threaded Insert, Top Mount Opening, Side Mount Opening, 4-40, Floating Bobbin, Side Opening
Flange Feature	-	3.25 mm
Flange Feature	-	0.128 in
Flange Feature [diameter]	0.116 in	0.116 - 0.156 in
Flange Feature [diameter]	2.95 mm	2.95 - 3.96 mm
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole	Through Hole
Number of Positions	92	92
Number of Positions/Bay/Row [custom]	46	46
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder Eyelet(s)	Solder Eyelet(s), Solder, Wire Wrap
Termination Rows	2	2

896-092 Series

CONN EDGE DUAL FMALE 92POS 0.125

Part	Color	Number of Positions	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Mounting Type	Contact Material	Read Out	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Number of Rows	Pitch [x]	Pitch [x]	Flange Feature	Flange Feature
EDAC Inc. 896-092-500-204	Black	92	Solder Eyelet(s)	3.96 mm	Flush Mount, Top Opening, Unthreaded	0.156 in	Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm
EDAC Inc. 896-092-520-802	Black	92	Solder				Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm	3.25 mm	0.128 in
EDAC Inc. 896-092-522-807	Black	92	Solder		M3, Threaded Insert, Top Mount Opening		Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm
EDAC Inc. 896-092-521-812	Black	92	Solder		Side Mount Opening, Unthreaded		Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm	3.25 mm	0.128 in
EDAC Inc. 896-092-540-808	Black	92	Wire Wrap		4-40, Threaded Insert, Top Mount Opening		Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm
EDAC Inc. 896-092-540-207	Black	92	Wire Wrap		Flush Mount, M3, Threaded Insert, Top Opening		Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm
EDAC Inc. 896-092-521-803	Black	92	Solder	2.95 mm	Floating Bobbin, Top Mount Opening	0.116 in	Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm
EDAC Inc. 896-092-522-808	Black	92	Solder		4-40, Threaded Insert, Top Mount Opening		Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm
EDAC Inc. 896-092-500-212	Black	92	Solder Eyelet(s)	3.25 mm	Flush Mount, Side Opening, Unthreaded	0.128 "	Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm
EDAC Inc. 896-092-500-807	Black	92	Solder Eyelet(s)		M3, Threaded Insert, Top Mount Opening		Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Cantilever	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	Copper Alloy	Dual	2	125 °C	-40 °C	46	2	0.125 in	3.18 mm
