Description
General part information
TTCAMCSANF-12.800000

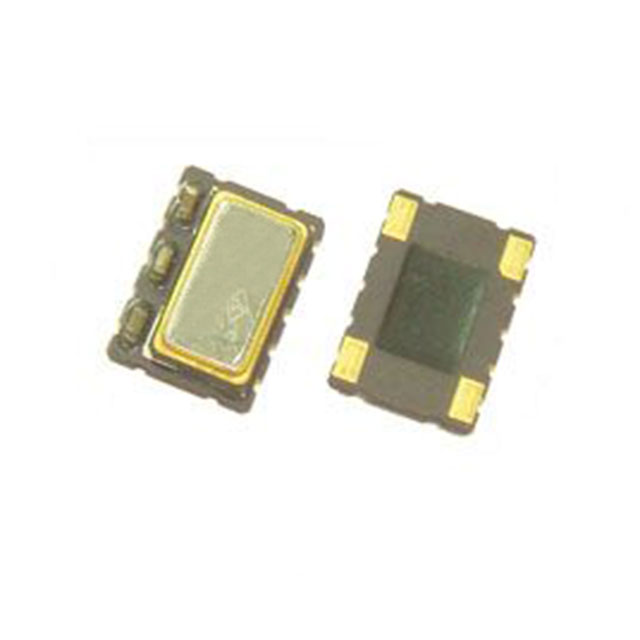

12.8 MHz VCTCXO Clipped Sine Wave Oscillator 5V 4-SMD, No Lead Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | TTCAMCSANF-12.800000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 3.5 mA |
| Frequency | 12.8 MHz |
| Frequency Stability | 100 ppb |
| Height - Seated (Max) | 0.083 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | VCTCXO |
| Voltage - Supply | 5 VDC |
