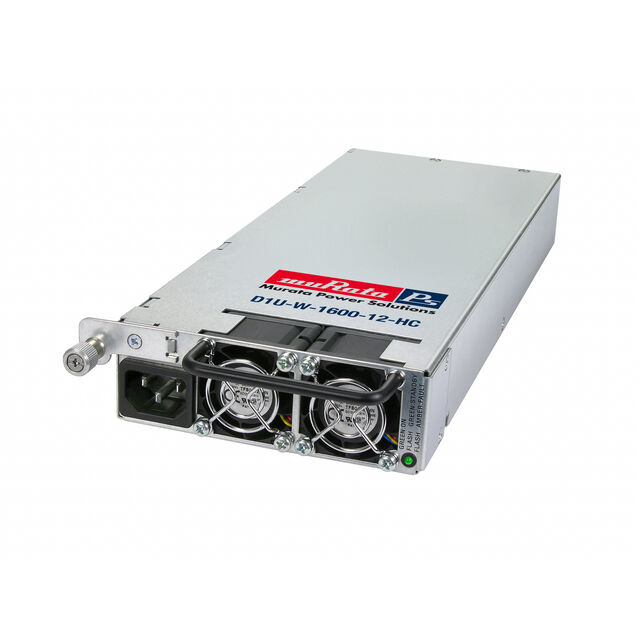

D1U-W-1600-12-HA2C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 1600W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D1U-W-1600-12-HA2C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 1600W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D1U-W-1600-12-HA2C | D1U-W Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE, cCSAus, TUV | CE, cCSAus, TUV |
| Current - Output 1 | 131.6 A | 24.6 - 131.6 A |
| Efficiency | 90 % | 90 - 90.6 % |
| Features | I2C Interface, Remote Sense, Hot Swappable, Load Sharing, PMBus™, PFC, Universal Input, Standby Output | I2C Interface, Hot Swappable, Load Sharing, Standby Output, Remote Sense, PFC, Universal Input, PMBus™ |
| Minimum Load Required | True | True |
| Mounting Type | Rack Mount | Rack Mount |
| Number of Outputs | 1 | 1 |
| Power (Watts) | 1600 W | 1200 - 2000 W |
| Size / Dimension [x] | 12 in | 12 in |
| Size / Dimension [x] | 304.8 mm | 304.8 mm |
| Size / Dimension [y] | 4.75 in | 4.75 in |
| Size / Dimension [y] | 120.7 mm | 120.7 mm |
| Size / Dimension [z] | 41 mm | 41 mm |
| Size / Dimension [z] | 1.6 " | 1.6 " |
| Type | Front End | Front End |
| Voltage - Input [Max] | 264 VAC, 140 VAC | 140 - 264 VAC |
| Voltage - Input [Min] | 180 VAC, 90 VAC | 90 - 180 VAC |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 12 V | 12 - 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
D1U-W Series
AC/DC CONVERTER 12V 1200W
| Part | Current - Output 1 | Mounting Type | Applications | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Type | Number of Outputs | Power (Watts) | Voltage - Isolation | Features | Approval Agency | Minimum Load Required | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. D1U-W-1200-12-HC2C | 98.3 A | Rack Mount | ITE (Commercial) | 12 V | 90 VAC | 264 VAC | 90.6 % | Front End | 1 | 1200 W | 3000 V | Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | ||||||||
Murata Power Solutions Inc. D1U-W-1600-12-HA2C | 131.6 A | Rack Mount | ITE (Commercial) | 12 V | 90 VAC, 180 VAC | 140 VAC, 264 VAC | 90 % | Front End | 1 | 1600 W | 3000 V | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | cCSAus, CE, TUV | 12 in | 4.75 in | 41 mm | 1.6 " | 120.7 mm | 304.8 mm | |
Murata Power Solutions Inc. D1U-W-1200-48-HC2C | 24.6 A | Rack Mount | ITE (Commercial) | 48 V | 90 VAC, 180 VAC | 140 VAC, 264 VAC | 90 % | Front End | 1 | 1200 W | 3000 V | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | cCSAus, CE, TUV | 12 in | 4.75 in | 41 mm | 1.6 " | 120.7 mm | 304.8 mm | |
Murata Power Solutions Inc. D1U-W-1600-48-HA2C | 33 A | Rack Mount | ITE (Commercial) | 48 V | 90 VAC, 180 VAC | 140 VAC, 264 VAC | 90 % | Front End | 1 | 1600 W | 3000 V | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | cCSAus, CE, TUV | 12 in | 4.75 in | 41 mm | 1.6 " | 120.7 mm | 304.8 mm | |
Murata Power Solutions Inc. D1U-W-2000-48-HA2C | 41.3 A | Rack Mount | ITE (Commercial) | 48 V | 90 VAC | 264 VAC | 90.6 % | Front End | 1 | 2000 W | 3000 V | Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | cCSAus, CE, TUV |
Description
General part information
D1U-W Series
Front End AC DC Converters 1 Output 12V 90 ~ 140 VAC, 180 ~ 264 VAC Input
