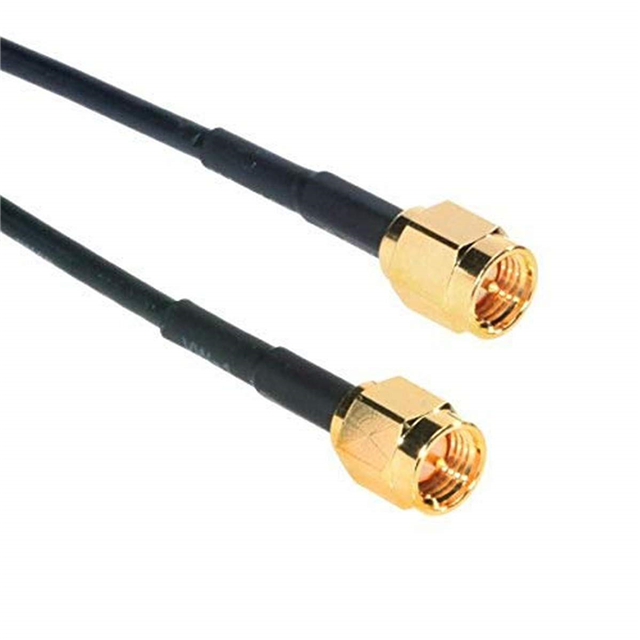

CO-174SMAX200-001

Active

AMPHENOL CABLES ON DEMAND

RF / COAXIAL CABLE ASSEMBLY, CABLE RG174/U, SMA PLUG TO SMA PLUG, RG174/U, 1 FT, 305 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CO-174SMAX200-001

Active

AMPHENOL CABLES ON DEMAND

RF / COAXIAL CABLE ASSEMBLY, CABLE RG174/U, SMA PLUG TO SMA PLUG, RG174/U, 1 FT, 305 MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CO-174SMAX200-001	CO-174SMAX Series

1st Connector	SMA Plug	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	SMA Plug	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Impedance	50 Ohms	50 Ohms
Cable Type	RG-174	RG-174
Color	Black	Black
Features	Shielded	Shielded
Frequency - Max [Max]	6000 MHz	6000 MHz
Length	12 "	6 - 84 in
Length	304.8 mm	2.1 - 1200 mm
Length	-	4 - 10 ft
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	SMA to SMA	SMA to SMA

CO-174SMAX Series

RF / COAXIAL CABLE ASSEMBLY, CABLE RG174/U, SMA PLUG TO SMA PLUG, RG174/U, 6 ", 152 MM

Part	Style	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Color	1st Connector Mounting Type	1st Connector	Cable Type	Cable Impedance	2nd Connector	Features	Frequency - Max [Max]	1st Contact Gender	2nd Contact Gender	2nd Connector Mounting Type	Length
AMPHENOL CABLES ON DEMAND CO-174SMAX200-000.6	SMA to SMA	85 °C	-40 °C	152.4 mm	6 in	Black	Free Hanging (In-Line)	SMA Plug	RG-174	50 Ohms	SMA Plug	Shielded	6000 MHz	Male	Male	Free Hanging (In-Line)
AMPHENOL CABLES ON DEMAND CO-174SMAX200-003	SMA to SMA	85 °C	-40 °C	91.44 cm	36 in	Black	Free Hanging (In-Line)	SMA Plug	RG-174	50 Ohms	SMA Plug	Shielded	6000 MHz	Male	Male	Free Hanging (In-Line)
AMPHENOL CABLES ON DEMAND CO-174SMAX200-007	SMA to SMA	85 °C	-40 °C	2.1 m	84 in	Black	Free Hanging (In-Line)	SMA Plug	RG-174	50 Ohms	SMA Plug	Shielded	6000 MHz	Male	Male	Free Hanging (In-Line)	7 ft
AMPHENOL CABLES ON DEMAND CO-174SMAX200-001	SMA to SMA	85 °C	-40 °C	304.8 mm	12 "	Black	Free Hanging (In-Line)	SMA Plug	RG-174	50 Ohms	SMA Plug	Shielded	6000 MHz	Male	Male	Free Hanging (In-Line)
AMPHENOL CABLES ON DEMAND CO-174SMAX200-002	SMA to SMA	85 °C	-40 °C	609.6 mm	24 "	Black	Free Hanging (In-Line)	SMA Plug	RG-174	50 Ohms	SMA Plug	Shielded	6000 MHz	Male	Male	Free Hanging (In-Line)
AMPHENOL CABLES ON DEMAND CO-174SMAX200-010	SMA to SMA	85 °C	-40 °C	3 m	10 ft	Black	Free Hanging (In-Line)	SMA Plug	RG-174	50 Ohms	SMA Plug	Shielded	6000 MHz	Male	Male	Free Hanging (In-Line)	10 '
AMPHENOL CABLES ON DEMAND CO-174SMAX200-004	SMA to SMA	85 °C	-40 °C	1200 mm	48 in	Black	Free Hanging (In-Line)	SMA Plug	RG-174	50 Ohms	SMA Plug	Shielded	6000 MHz	Male	Male	Free Hanging (In-Line)	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 17.50
		10	$ 13.46
		25	$ 12.18
		50	$ 11.31
		100	$ 10.52
		250	$ 9.59
		500	$ 8.97
		1000	$ 8.40
Newark	Each	1	$ 12.45
		5	$ 11.80
		10	$ 11.14
		25	$ 9.71
		50	$ 9.44
		100	$ 9.17
		250	$ 8.46

Description

General part information

CO-174SMAX Series

Cable Assembly Coaxial SMA to SMA RG-174 12.00" (304.80mm)
