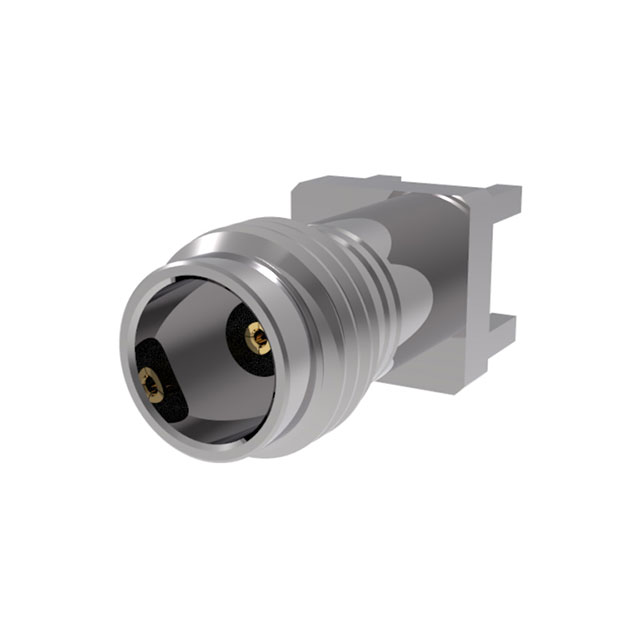

TMB-V4FS-3SM
ActiveCarlisleIT
2.4(F)STR,VL,MIXED-TECH,SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMB-V4FS-3SM | TMB-V4 Series |
|---|---|---|
| Body Finish | Gold | Gold |
| Body Material | Brass | Brass, Stainless Steel |
| Center Contact Material | Beryllium Copper | Beryllium Copper |
| Center Contact Plating | Gold | Gold |
| Connector Style | OS-50 | OS-50 |
| Connector Style | 2.4 mm | 2.4 mm |
| Connector Style | APC-2.4 | APC-2.4 |
| Connector Type | Female Socket, Jack | Female Socket, Jack |
| Contact Termination | Solder | Solder, Compression |
| Features | - | Field Replaceable, For Hermetically Sealed Pin |
| Frequency - Max [Max] | 50 GHz | 50 GHz |
| Housing Color | Gold | Gold, Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Insertion Loss | 0.6 dB | 0.42 - 0.6 dB |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Flange |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 85 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -55 ░C |
| Shield Termination | Solder | Solder, Screw |
| Voltage Rating | 400 V | 400 - 500 V |
TMB-V4 Series
2.4(F)STR,VL,MIXED-TECH,SOLDER
| Part | Contact Termination | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Voltage Rating | Connector Type | Connector Style | Connector Style | Connector Style | Insertion Loss | Center Contact Material | Mounting Type | Housing Color | Shield Termination | Mating Cycles | Body Finish | Impedance | Body Material | Number of Ports | Mounting Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CarlisleIT TMB-V4FS-3SM | Solder | Gold | -65 ░C | 165 °C | 50 GHz | 400 V | Female Socket, Jack | OS-50 | 2.4 mm | APC-2.4 | 0.6 dB | Beryllium Copper | Through Hole | Gold | Solder | 500 | Gold | 50 Ohms | Brass | 1 | ||
CarlisleIT TMB-V4F2-3L1 | Compression | Gold | -55 °C | 85 °C | 50 GHz | 500 V | Female Socket, Jack | OS-50 | 2.4 mm | APC-2.4 | 0.42 dB | Beryllium Copper | Surface Mount | Silver | Screw | 500 | 50 Ohms | Stainless Steel | 1 | Flange | Field Replaceable, For Hermetically Sealed Pin | |
CarlisleIT TMB-V4F2-3L1 | Compression | Gold | -55 °C | 85 °C | 50 GHz | 500 V | Female Socket, Jack | OS-50 | 2.4 mm | APC-2.4 | 0.42 dB | Beryllium Copper | Surface Mount | Silver | Screw | 500 | 50 Ohms | Stainless Steel | 1 | Flange | Field Replaceable, For Hermetically Sealed Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 31.01 | |
| 10 | $ 29.51 | |||
Description
General part information
TMB-V4 Series
2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Through Hole Solder
