PE91178
ActivePasternack
LOW PIM N FEMALE TO SMA MALE ADA
PE91178
ActivePasternack
LOW PIM N FEMALE TO SMA MALE ADA
Description
General part information
PE91178

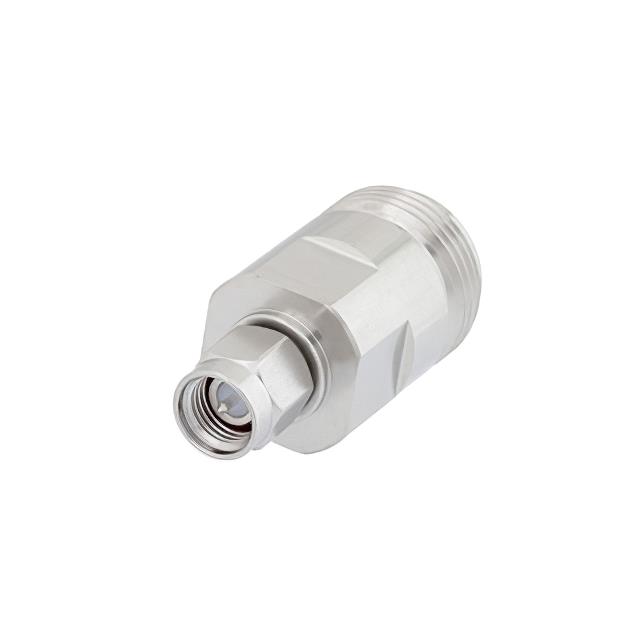

Adapter Coaxial Connector N Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE91178 |
|---|---|
| Adapter Series | SMA to N |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | SMA Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -45 °C |
| Style | Straight |
