FGW.LM.U2A.XPAT

Active

LEMO

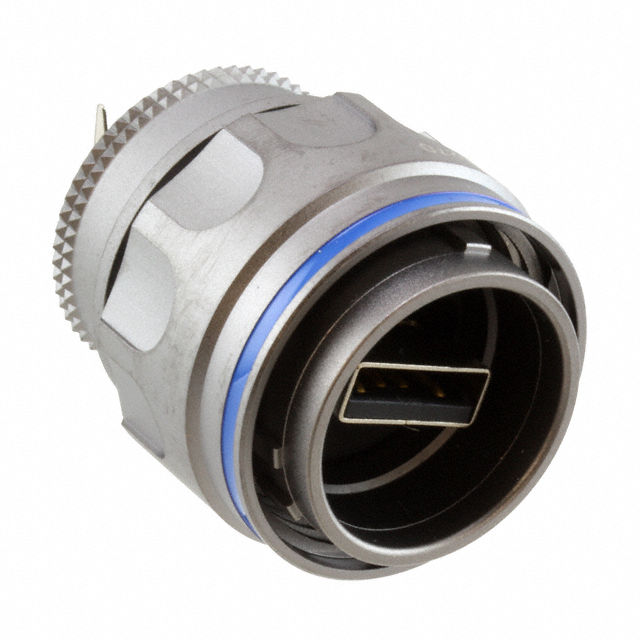

CONN PLUG USB2.0 TYPEA 4POS SLD

Search across all available documentation for this part.

Active

LEMO

CONN PLUG USB2.0 TYPEA 4POS SLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGW.LM.U2A.XPAT	FGW.LM Series

Applications	-	Military, Aerospace, Automotive, Aviation
Cable Opening	-	22.7 mm
Cable Opening	-	0.894 in
Color	-	Gray
Connector Type	USB-A (USB TYPE-A)	USB-A (USB TYPE-A), Plug, Male Pins
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	1 µm
Contact Finish Thickness - Mating	-	39.4 µin
Contact Material	-	Brass
Current Rating (Amps)	-	2.5 A
Features	Circular Threaded Coupling	Circular Threaded Coupling, Coupling Nut
Gender	Plug	Plug
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	-	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Contacts [custom]	4	4
Number of Ports	1	1
Number of Positions	-	68
Operating Temperature	-	-55 °C
Operating Temperature	-	200 °C
Orientation	-	W
Primary Material	-	Metal
Shell Finish	-	Nickel
Shell Material	-	Aluminum Alloy
Shell Size - Insert	-	368
Shielding	-	Shielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder, Crimp

CONN PLUG USB2.0 TYPEA 4POS SLD

Part	Gender	Number of Ports	Number of Contacts [custom]	Connector Type	Mounting Type	Ingress Protection	Termination	Features	Specifications	Shell Material	Shell Finish	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Insert Material	Contact Finish - Mating	Primary Material	Applications	Number of Positions	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Shielding	Contact Material
LEMO FGW.LM.U2A.XPAT	Plug	1	4	USB-A (USB TYPE-A)	Free Hanging (In-Line)	IP68 - Dust Tight, Waterproof	Solder	Circular Threaded Coupling	USB 2.0
LEMO FGW.LM.368.XLCT				Male Pins, Plug	Free Hanging (In-Line)	IP68 - Dust Tight, Waterproof	Crimp	Coupling Nut		Aluminum Alloy	Nickel	W	1 µm	39.4 µin	Gray	Polyetheretherketone (PEEK)	Gold	Metal	Aerospace, Automotive, Aviation, Military	68	368	-55 °C	200 °C	22.7 mm	0.894 in	2.5 A	Shielded	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Free Hanging (In-Line)
