L12-10-50-12-S

Active

Actuonix Motion Devices Inc

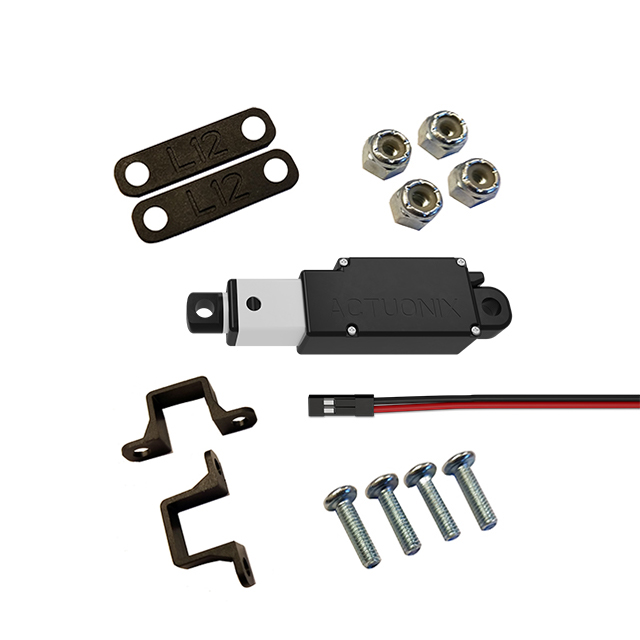

L12-S MICRO LINEAR ACTUATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L12-10-50-12-S

Active

Actuonix Motion Devices Inc

L12-S MICRO LINEAR ACTUATOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.00

Description

General part information

L12-10 Series

L12-S MICRO LINEAR ACTUATOR

Documents

Technical documentation and resources

Datasheet

Specification	L12-10-50-12-S	L12-10 Series

Accuracy	0.1 mm	0.1 mm
Construction	Ball Screw	Ball Screw
Duty Cycle	20 %	20 %
Features	Limit Switches	Limit Switches
Feedback Type	-	Potentiometer
Gear Reduction Ratio	50	50 - 210
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Load Force (Dynamic)	-	42 - 80 N
Load Force (Dynamic)	-	9.44 - 17.99 lbf
Load Force (Static)	200 N	200 N
Load Force (Static)	44.96 lbf	44.96 lbf
Motor Type	Brushed	Brushed
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Speed	25 mm/s	6.6 - 25 mm/s
Speed	0.98 in/s	0.26 - 0.98 in/s
Stroke Length [x]	0.394 in	0.394 in
Stroke Length [x]	10 mm	10 mm
Type	Linear Actuator	Linear Actuator
Voltage - Rated	12 VDC	6 - 12 VDC

Part

Features

Accuracy

Speed

Ingress Protection

Motor Type

Voltage - Rated

Duty Cycle

Construction

Gear Reduction Ratio

Load Force (Static)

Type

Operating Temperature [Min] [custom]

Operating Temperature [Max] [custom]

Stroke Length [x]

Feedback Type

Load Force (Dynamic)

Actuonix Motion Devices Inc

L12-10-50-6-S

Limit Switches

0.1 mm

25 mm/s

0.98 in/s

IP54 - Dust Protected, Water Resistant

Brushed

6 VDC

20 %

Ball Screw

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

Actuonix Motion Devices Inc

L12-10-100-12-P

0.1 mm

IP54 - Dust Protected, Water Resistant

Brushed

12 VDC

20 %

Ball Screw

100

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

Potentiometer

42 N

9.44 lbf

Actuonix Motion Devices Inc

L12-10-100-6-S

Limit Switches

0.1 mm

IP54 - Dust Protected, Water Resistant

Brushed

6 VDC

20 %

Ball Screw

100

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

42 N

9.44 lbf

Actuonix Motion Devices Inc

L12-10-210-6-P

0.1 mm

6.6 mm/s

0.26 in/s

IP54 - Dust Protected, Water Resistant

Brushed

6 VDC

20 %

Ball Screw

210

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

Potentiometer

80 N

17.99 lbf

Actuonix Motion Devices Inc

L12-10-100-12-S

Limit Switches

0.1 mm

IP54 - Dust Protected, Water Resistant

Brushed

12 VDC

20 %

Ball Screw

100

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

42 N

9.44 lbf

Actuonix Motion Devices Inc

L12-10-210-12-P

0.1 mm

6.6 mm/s

0.26 in/s

IP54 - Dust Protected, Water Resistant

Brushed

12 VDC

20 %

Ball Screw

210

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

Potentiometer

80 N

17.99 lbf

Actuonix Motion Devices Inc

L12-10-50-12-P

0.1 mm

25 mm/s

0.98 in/s

IP54 - Dust Protected, Water Resistant

Brushed

12 VDC

20 %

Ball Screw

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

Potentiometer

Actuonix Motion Devices Inc

L12-10-210-12-S

Limit Switches

0.1 mm

6.6 mm/s

0.26 in/s

IP54 - Dust Protected, Water Resistant

Brushed

12 VDC

20 %

Ball Screw

210

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

80 N

17.99 lbf

Actuonix Motion Devices Inc

L12-10-50-6-P

0.1 mm

25 mm/s

0.98 in/s

IP54 - Dust Protected, Water Resistant

Brushed

6 VDC

20 %

Ball Screw

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

Potentiometer

Actuonix Motion Devices Inc

L12-10-100-6-P

0.1 mm

IP54 - Dust Protected, Water Resistant

Brushed

6 VDC

20 %

Ball Screw

100

200 N

44.96 lbf

Linear Actuator

-10 °C

50 °C

0.394 in

10 mm

Potentiometer

42 N

9.44 lbf

Part	Features	Accuracy	Speed	Speed	Ingress Protection	Motor Type	Voltage - Rated	Duty Cycle	Construction	Gear Reduction Ratio	Load Force (Static)	Load Force (Static)	Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Stroke Length [x]	Stroke Length [x]	Feedback Type	Load Force (Dynamic)	Load Force (Dynamic)
Actuonix Motion Devices Inc L12-10-50-6-S	Limit Switches	0.1 mm	25 mm/s	0.98 in/s	IP54 - Dust Protected, Water Resistant	Brushed	6 VDC	20 %	Ball Screw	50	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm
Actuonix Motion Devices Inc L12-10-100-12-P		0.1 mm			IP54 - Dust Protected, Water Resistant	Brushed	12 VDC	20 %	Ball Screw	100	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm	Potentiometer	42 N	9.44 lbf
Actuonix Motion Devices Inc L12-10-100-6-S	Limit Switches	0.1 mm			IP54 - Dust Protected, Water Resistant	Brushed	6 VDC	20 %	Ball Screw	100	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm		42 N	9.44 lbf
Actuonix Motion Devices Inc L12-10-210-6-P		0.1 mm	6.6 mm/s	0.26 in/s	IP54 - Dust Protected, Water Resistant	Brushed	6 VDC	20 %	Ball Screw	210	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm	Potentiometer	80 N	17.99 lbf
Actuonix Motion Devices Inc L12-10-100-12-S	Limit Switches	0.1 mm			IP54 - Dust Protected, Water Resistant	Brushed	12 VDC	20 %	Ball Screw	100	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm		42 N	9.44 lbf
Actuonix Motion Devices Inc L12-10-210-12-P		0.1 mm	6.6 mm/s	0.26 in/s	IP54 - Dust Protected, Water Resistant	Brushed	12 VDC	20 %	Ball Screw	210	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm	Potentiometer	80 N	17.99 lbf
Actuonix Motion Devices Inc L12-10-50-12-P		0.1 mm	25 mm/s	0.98 in/s	IP54 - Dust Protected, Water Resistant	Brushed	12 VDC	20 %	Ball Screw	50	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm	Potentiometer
Actuonix Motion Devices Inc L12-10-210-12-S	Limit Switches	0.1 mm	6.6 mm/s	0.26 in/s	IP54 - Dust Protected, Water Resistant	Brushed	12 VDC	20 %	Ball Screw	210	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm		80 N	17.99 lbf
Actuonix Motion Devices Inc L12-10-50-6-P		0.1 mm	25 mm/s	0.98 in/s	IP54 - Dust Protected, Water Resistant	Brushed	6 VDC	20 %	Ball Screw	50	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm	Potentiometer
Actuonix Motion Devices Inc L12-10-100-6-P		0.1 mm			IP54 - Dust Protected, Water Resistant	Brushed	6 VDC	20 %	Ball Screw	100	200 N	44.96 lbf	Linear Actuator	-10 °C	50 °C	0.394 in	10 mm	Potentiometer	42 N	9.44 lbf
