ZL40292LDF1
ActiveMicrochip Technology
DB2000 LOW JITTER, LOW POWER PCIE BUFFER
Deep-Dive with AI
Search across all available documentation for this part.
ZL40292LDF1
ActiveMicrochip Technology
DB2000 LOW JITTER, LOW POWER PCIE BUFFER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZL40292LDF1 | ZL40292 Series |
|---|---|---|
| - | - | |
| Differential - Input:Output [custom] | True | True |
| Differential - Input:Output [custom] | True | True |
| Frequency - Max [Max] | 250 MHz | 250 MHz |
| Input | Clock | Clock |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | HCSL | HCSL |

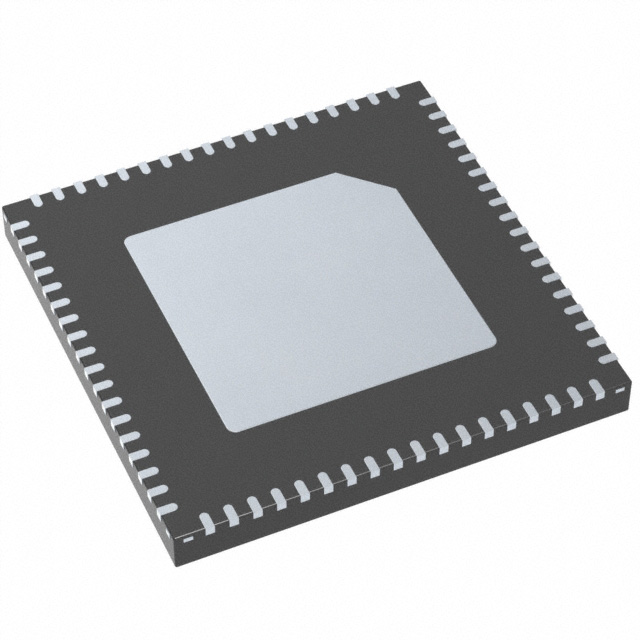

| Package / Case | 72-VFQFN Exposed Pad | 72-VFQFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:20 | 1:20 |
| Supplier Device Package | 72-QFN (10x10) | 72-QFN (10x10) |
| Type | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) |
| Voltage - Supply [Max] | 3.465 V | 3.465 V |
| Voltage - Supply [Min] | 3.135 V | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.22 | |
| 25 | $ 5.18 | |||
| 100 | $ 5.00 | |||
| Digi-Reel® | 1 | $ 6.22 | ||
| 25 | $ 5.18 | |||
| 100 | $ 5.00 | |||
| Tape & Reel (TR) | 2000 | $ 5.00 | ||
| Microchip Direct | T/R | 1 | $ 6.21 | |
| 25 | $ 5.18 | |||
| 100 | $ 4.71 | |||
| 1000 | $ 4.55 | |||
| 5000 | $ 4.49 | |||
ZL40292 Series
DB2000 Low Jitter, Low Power PCIe Buffer
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Mounting Type | Number of Circuits | Frequency - Max [Max] | Output | Input | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Ratio - Input:Output [custom] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL40292LDF1 | 85 °C | -40 °C | Fanout Buffer (Distribution) | Surface Mount | 1 | 250 MHz | HCSL | Clock | 72-QFN (10x10) | 3.465 V | 3.135 V | 1:20 | 72-VFQFN Exposed Pad | ||
Microchip Technology ZL40292LDG1 | |||||||||||||||
Microchip Technology ZL40292LDG1 | 85 °C | -40 °C | Fanout Buffer (Distribution) | Surface Mount | 1 | 250 MHz | HCSL | Clock | 72-QFN (10x10) | 3.465 V | 3.135 V | 1:20 | 72-VFQFN Exposed Pad |
Description
General part information
ZL40292 Series
The ZL40292 is part of a family of high-performance, ultra-low jitter, low power 1 to 20 HCSL fanout buffers. The ZL40292 is fully compliant to the DB2000Q standard. Applications include PCI Express generation 1/2/3/4/5 clock distribution , Intel QPI Servers , Storage and Data Centers, Switches and Routers
