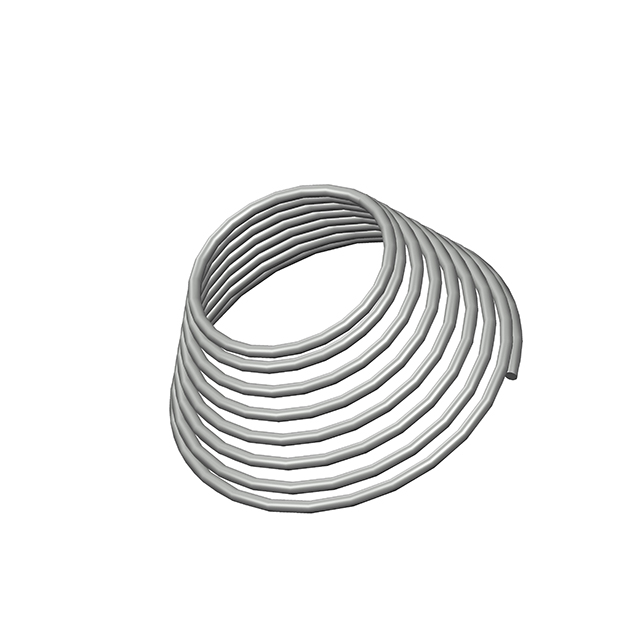

TA-2304CS
ActiveCentury Spring Corp
LO= 0.75, SO= 0.438, W= 0.026
TA-2304CS
ActiveCentury Spring Corp
LO= 0.75, SO= 0.438, W= 0.026
Description
General part information
TA-2304CS
LO= 0.75, SO= 0.438, W= 0.026
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2304CS |
|---|---|
| Diameter - Inside | 0.39 in |
| Diameter - Large Outside | 0.75 in |
| Diameter - Small Outside | 0.438 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.38 in |
| Material | Spring Steel |
| Rate (lbs/in) | 0.6 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.026 in |
