9418ZH 0101000

Active

Belden Inc.

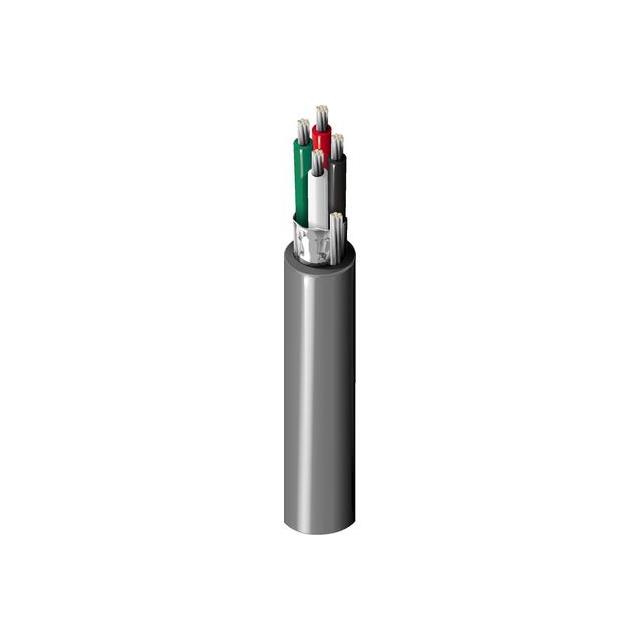

CABLE 4COND 18AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9418ZH 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style 21307
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Ratings	Wire Gauge	Voltage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Shield Type	Cable Type	Shield Material	Features	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Shield Coverage	Jacket Color	Length [x]	Length [x]
Belden Inc. 9418ZH 0101000	UL Style 21307	18 AWG	300 V	4	19	30 AWG	1000 ft	304.8 m	Foil	Multi-Conductor	Aluminum	Drain Wire	Polypropylene (PP)	0.889 mm	0.035 in	Copper Tinned	100 %	Black
Belden Inc. 9418ZH 010500	UL Style 21307	18 AWG	300 V	4	19	30 AWG			Foil	Multi-Conductor	Aluminum	Drain Wire	Polypropylene (PP)	0.889 mm	0.035 in	Copper Tinned	100 %	Black	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.98

General part information

4 Conductor Multi-Conductor Cable Black 18 AWG Foil 1000.0' (304.8m)
