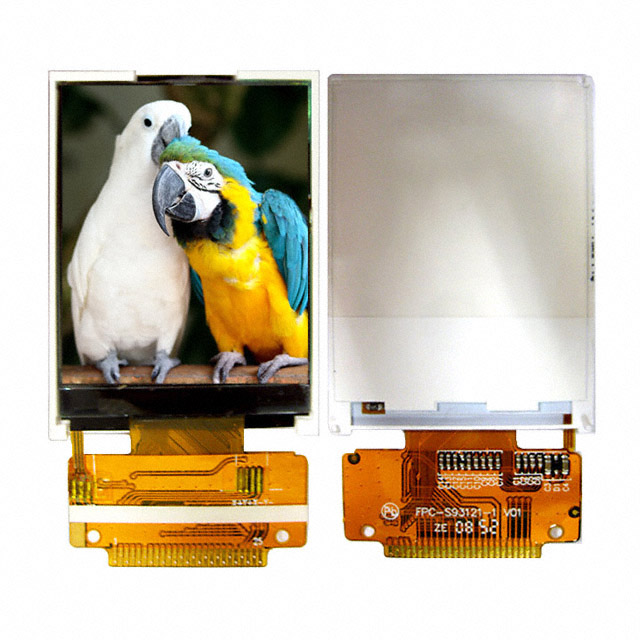

NHD-1.8-128160ZF-CTXL#
ObsoleteNewhaven Display Intl
LCD DISP TFT 1.8" 128X160 B/L
Deep-Dive with AI
Search across all available documentation for this part.
NHD-1.8-128160ZF-CTXL#
ObsoleteNewhaven Display Intl
LCD DISP TFT 1.8" 128X160 B/L
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-1.8-128160ZF-CTXL# |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size [custom] | 45.72 mm |
| Diagonal Screen Size [custom] | 1.8 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 160 |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel |
| Interface | 24 Bit |
| Viewing Area [x] | 28.03 mm |
| Viewing Area [y] | 35.04 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-1.8-128160ZF-CTXL#
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 1.8" (45.72mm) 128 x 160
