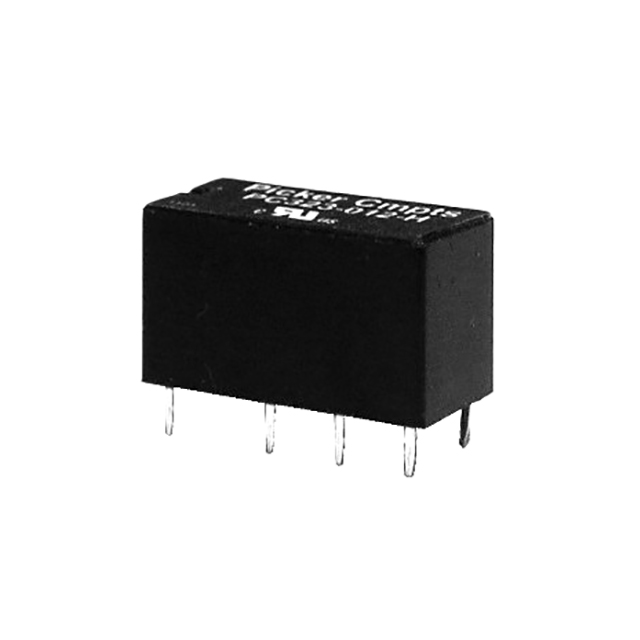

PC323-24H-X

Active

Picker Components

RELAY TELECOM DPDT 2A 24V

Search across all available documentation for this part.

Active

Picker Components

RELAY TELECOM DPDT 2A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY TELECOM DPDT 2A 24V

Part	Mounting Type	Contact Rating (Current)	Contact Material	Coil Resistance	Operate Time	Coil Current	Load - Max Switching	Relay Type	Coil Type	Must Operate Voltage	Coil Insulation	Contact Form	Release Time	Switching Voltage	Coil Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage
Picker Components PC323-24H-X	Through Hole	3 A	Gold (Au), Silver Nickel (AgNi)	2.88 kOhms	4.5 ms	8.3 mA	144 W, 750 VA	Telecom	Non Latching	18 VDC	Class B	DPDT (2 Form C)	1.5 ms	48 VDC, 250 VAC	24 VDC	PC Pin	85 °C	-40 °C	2.4 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Telecom Relay DPDT (2 Form C) 24VDC Coil Through Hole
