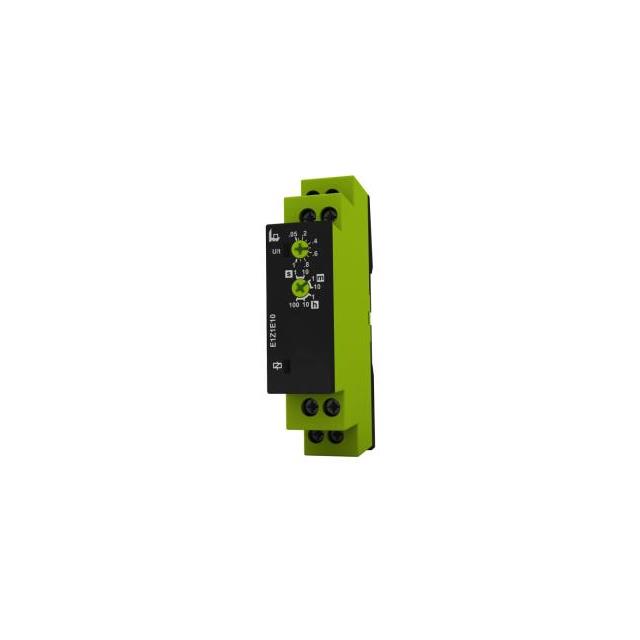

E1Z1E10 24-240V AC/DC (VE10)

Active

TELE Controls Inc

RELAY TIME DELAY 240V

Search across all available documentation for this part.

Active

TELE Controls Inc

RELAY TIME DELAY 240V

Technical Specifications

Parameters and characteristics for this part

Specification	E1Z1E10 24-240V AC/DC (VE10)

Contact Rating @ Voltage	250 VAC, 8 A
Delay Time [Max]	100 Hrs
Delay Time [Min]	1 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

RELAY TIME DELAY 240V

Part	Contact Rating @ Voltage	Timing Adjustment Method	Termination Style	Timing Initiate Method	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Delay Time [Max]	Delay Time [Min]	Relay Type	Function
TELE Controls Inc E1Z1E10 24-240V AC/DC (VE10)	8 A, 250 VAC	Screwdriver Slot	Screw Terminal	Input Voltage, Trigger Signal	DIN Rail	24 VAC	240 VAC	100 Hrs	1 Sec	Mechanical Relay	Programmable (Multi-Function)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 1 Sec ~ 100 Hrs Delay 8A @ 250VAC DIN Rail
