FTE-102-01-G-DH

Active

Samtec Inc.

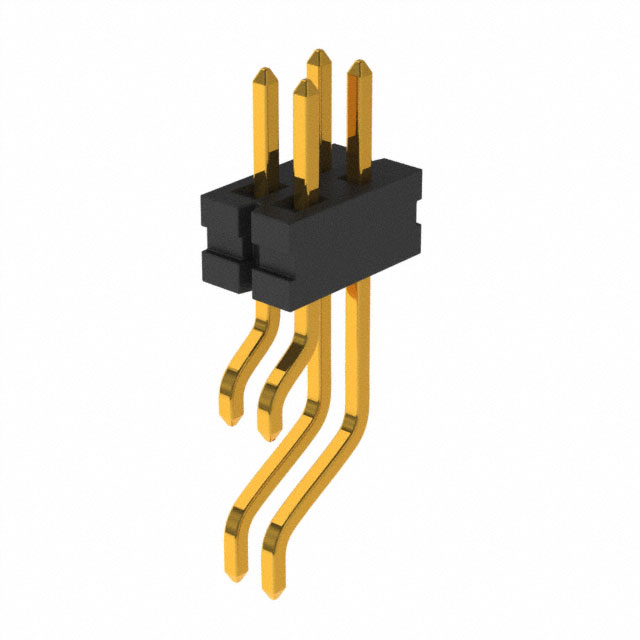

CONN HEADER SMD R/A 4POS 0.8MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER SMD R/A 4POS 0.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	FTE-102-01-G-DH

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Row Spacing - Mating	1.2 mm
Row Spacing - Mating	0.047 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Insulation Material	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Current Rating (Amps)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Fastening Type	Number of Rows	Shrouding	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Post
Samtec Inc. FTE-102-01-G-DH	3 µin	0.076 µm	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	1.2 mm	0.047 in	Surface Mount Right Angle	4	Header	0.031 in	0.8 mm	Black	All	Gold	2.7 A	Solder	-55 °C	125 °C	UL94 V-0	Push-Pull	2	Unshrouded	Square	1.9 mm	0.075 in	10 çin	0.25 çm	3.05 mm	0.12 in	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 4 position 0.031" (0.80mm)
