Description
General part information

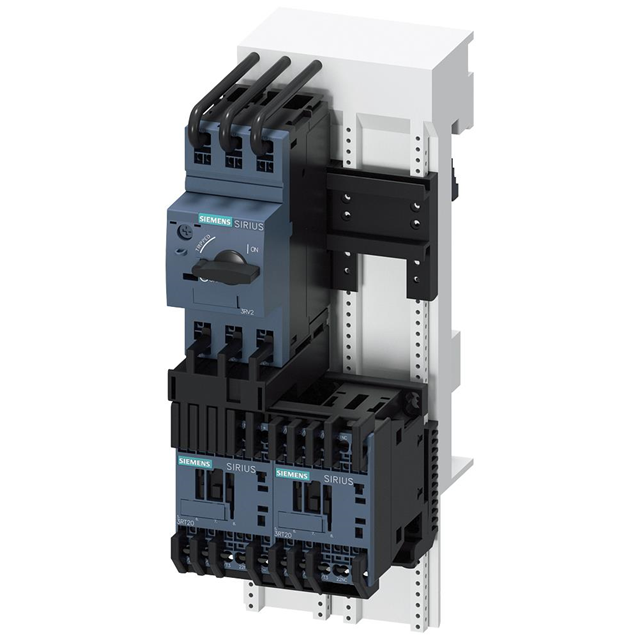

3RA22104AH182BB4
Motor Starter, Reversible 24VDC Supply 15.5A 690V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RA22104AH182BB4 |
|---|---|
| Control / Drive Type | Motor Starter, Reversible |
| Current - Output | 15.5 A |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Module |
| Voltage - Load | 690 V |
| Voltage - Supply | 24 VDC |
| Wattage - Load | 7.46 kW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
