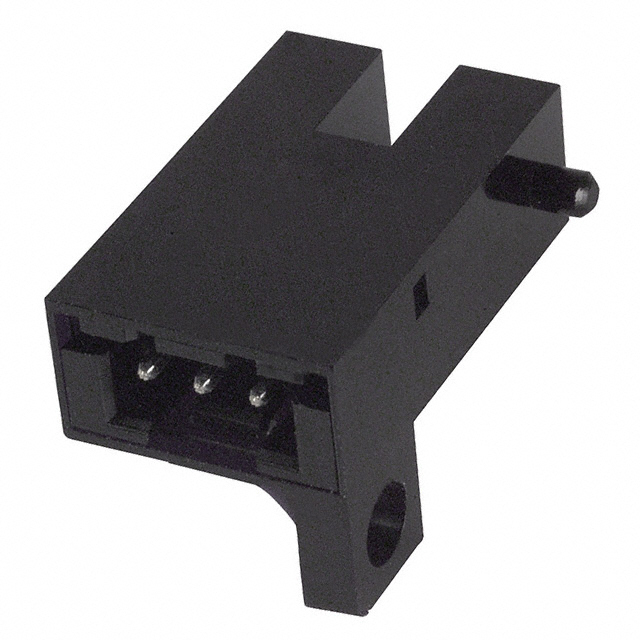

EE-SPX742
ActiveOmron Automation and Safety
SENSOR OPTICAL 3.6MM MODULE SLOT
EE-SPX742
ActiveOmron Automation and Safety
SENSOR OPTICAL 3.6MM MODULE SLOT
Description
General part information
EE-SPX742
Optical Sensor Through-Beam 0.142" (3.6mm) Module, Slotted
Technical Specifications
Parameters and characteristics for this part
| Specification | EE-SPX742 |
|---|---|
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | NPN - Open Collector, Dark-ON |
| Package / Case | Module, Slotted |
| Sensing Distance | 0.142 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 5 V |
