Description
General part information

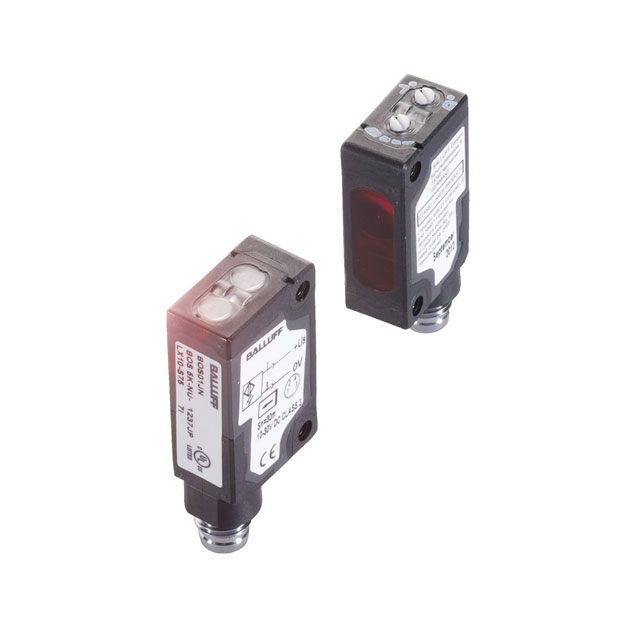

BOS0126
Through-Beam Optical Sensor 787.402" (20m) PNP-NO
Technical Specifications
Parameters and characteristics for this part
| Specification | BOS0126 |
|---|---|
| Adjustment Angle | 270 ° |
| Adjustment Type | Potentiometer, Adjustable |
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 880 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP-NO |
| Sensing Distance | 787.402 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
