165617-5
ActiveTE Connectivity AMP Connectors
110 PIDG FASTON REC
165617-5
ActiveTE Connectivity AMP Connectors
110 PIDG FASTON REC
Description
General part information
165617-5

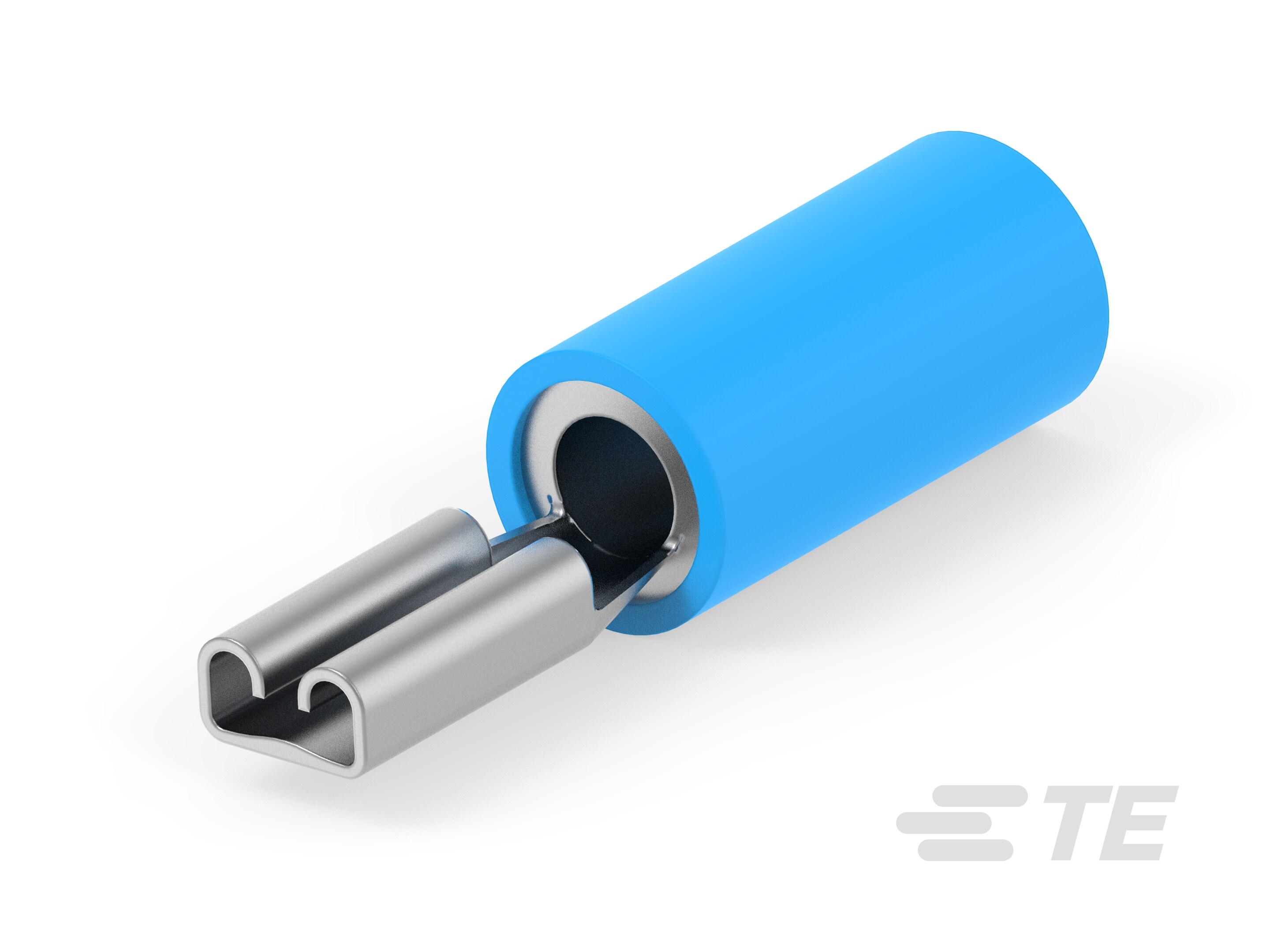

Quick Disconnect Receptacle, 15.5 – 13.5 AWG, 1.5 – 2.5 mm² Wire, 3000 – 4914 CMA, 2.79 mm [.11 in] Tab Width, Straight, Phosphor Bronze, Tin Plating
Technical Specifications
Parameters and characteristics for this part
| Specification | 165617-5 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Insulation | Non-Mating End Insulated |
| Length - Overall | 0.779 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.248 in |
| Tab Thickness | 0.031 in |
| Tab Width | 0.11 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
