T1319320121-000

Active

TE Connectivity AMP Connectors

H32A-TS-PG21

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

H32A-TS-PG21

Technical Specifications

Parameters and characteristics for this part

Specification	T1319320121-000

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H32A
Size / Dimension [x]	82 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	56 mm
Size / Dimension [y]	2.205 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Side Entry
Thread Size	PG21

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

H32A-TS-PG21

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Housing Material	Housing Color	Thread Size	Housing Finish	Style	Size	Lock Location	Ingress Protection
TE Connectivity AMP Connectors T1319320121-000	125 °C	-40 °C	Hood	82 mm	76 mm	3.228 in	2.992 in	56 mm	2.205 in	Aluminum Alloy, Die Cast	Gray	PG21	Powder Coated	Side Entry	H32A	Locking Clip (2) on Base Bottom	IP65 - Dust Tight, Water Resistant

General part information

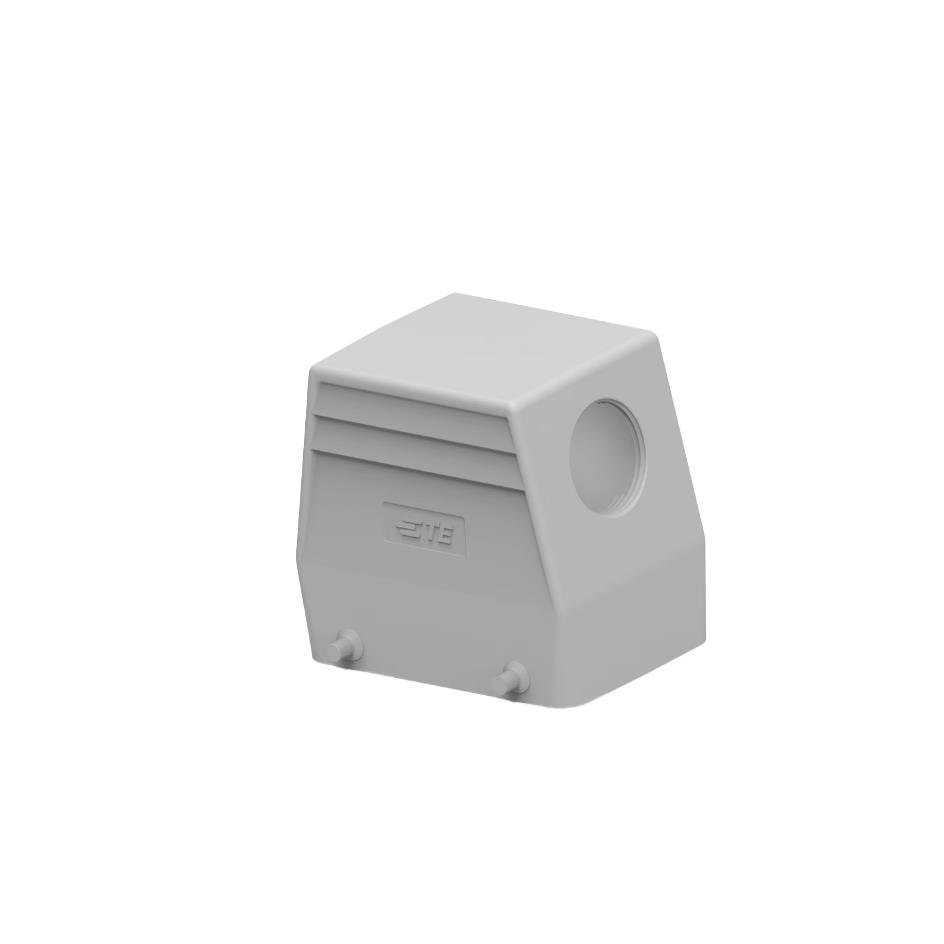

Hood Connector Side Entry PG21 H32A IP65 - Dust Tight, Water Resistant
