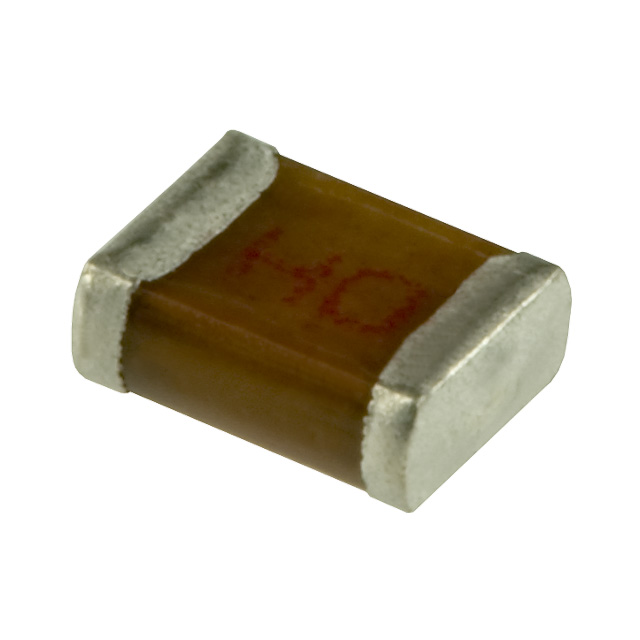

MC08EA220J-TF
ActiveCornell Dubilier Knowles
CAP MICA 22PF 5% 100V 0805
MC08EA220J-TF
ActiveCornell Dubilier Knowles
CAP MICA 22PF 5% 100V 0805
Description
General part information
MC08EA220J-TF
22 pF Mica Capacitor 100 V 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MC08EA220J-TF |
|---|---|
| Capacitance | 22 pF |
| Dielectric Material | Mica |
| Features | RF, Low Loss, High Q |
| Height - Seated (Max) | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 5 % |
| Voltage - Rated | 100 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
