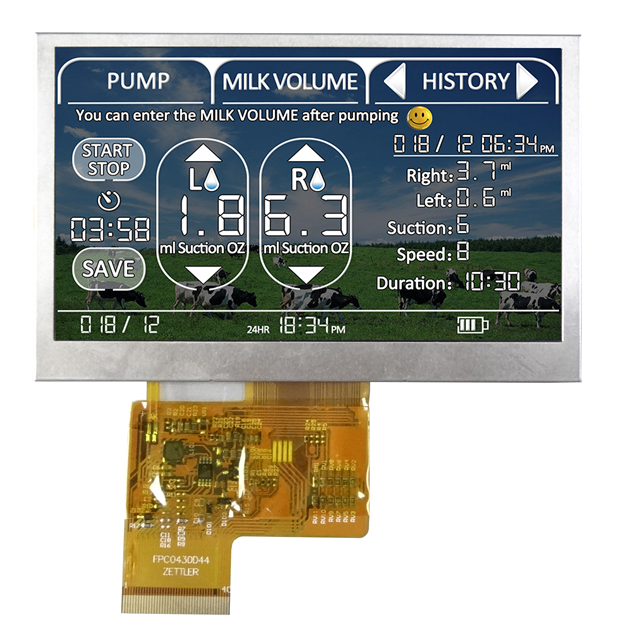

ATM0430D44

Active

AZ Displays

4.3" IPS LCD 800 X 480

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATM0430D44

Active

AZ Displays

4.3" IPS LCD 800 X 480

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 34.23
		10	$ 31.39

Description

General part information

ATM0430 Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 24-Bit (RGB) 4.3" (109.22mm) 800 x 480

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATM0430D44	ATM0430 Series

Background Color	White	White
Backlight	LED	LED
Controller Type	-	ILI6480
Diagonal Screen Size	109.22 mm	109.22 mm
Diagonal Screen Size	4.3 in	4.3 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)	TFT - Color, TFT - Color, IPS (In-Plane Switching)
Dot Pitch [x]	0.04 mm	0.04 - 0.07 mm
Dot Pitch [y]	0.11 mm	0.11 - 0.2 mm
Dot Pixels [x]	800	480 - 800
Dot Pixels [y]	480	272 - 480
Dot Size	-	0.2 mm
Dot Size [x]	0.12 mm	0.12 mm
Dot Size [y]	0.11 mm	0.11 - 0.2 mm
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	Parallel	24-Bit (RGB), Parallel
Interface	24 Bit	24 Bit
Touchscreen	-	Resistive, Capacitive
Viewing Area	-	53.56 mm
Viewing Area [x]	95.04 mm	95.04 - 96.24 mm
Viewing Area [y]	53.86 mm	53.86 - 95.04 mm

ATM0430 Series

4.3" RGB 480X272 720 NITS IPS,CA

Part	Graphics Color	Background Color	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [y]	Viewing Area [x]	Interface	Backlight	Display Type	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Dot Pitch [y]	Dot Pitch [x]	Dot Size [y]	Dot Size [z]	Controller Type	Touchscreen	Interface	Viewing Area [z]	Dot Size [x]
AZ Displays ATM0430D12B-CTN	Blue, Green, Red	White	272	480	55.06 mm	96.24 mm	24-Bit (RGB)	LED	TFT - Color	Transmissive	109.22 mm	4.3 in	0.2 mm	0.07 mm
AZ Displays ATM0430D56-T	Blue, Green, Red		272	480	53.86 mm	95.04 mm		LED	TFT - Color	Transmissive	109.22 mm	4.3 in	0.2 mm	0.07 mm	0.2 mm	0.2 mm	ILI6480	Resistive
AZ Displays ATM0430D19A	Blue, Green, Red	White	272	480	53.86 mm	95.04 mm	Parallel	LED	TFT - Color	Transmissive	109.22 mm	4.3 in	0.2 mm	0.07 mm	0.2 mm	0.2 mm			24 Bit
AZ Displays ATM0430D12	Blue, Green, Red	White	272	480	95.04 mm		Parallel	LED	TFT - Color	Transmissive	109.22 mm	4.3 in	0.2 mm	0.07 mm					24 Bit	53.56 mm
AZ Displays ATM0430D12M-T	Blue, Green, Red		272	480	53.86 mm	95.04 mm	24-Bit (RGB)	LED	TFT - Color	Transmissive	109.22 mm	4.3 in	0.2 mm	0.07 mm	0.2 mm	0.2 mm
AZ Displays ATM0430D44-CT	Blue, Green, Red	White	480	800	53.86 mm	95.04 mm	Parallel	LED	TFT - Color, IPS (In-Plane Switching)	Transmissive	109.22 mm	4.3 in	0.11 mm	0.04 mm	0.11 mm			Capacitive	24 Bit		0.12 mm
AZ Displays ATM0430D44-T	Blue, Green, Red	White	480	800	53.86 mm	95.04 mm	Parallel	LED	TFT - Color, IPS (In-Plane Switching)	Transmissive	109.22 mm	4.3 in	0.11 mm	0.04 mm	0.11 mm			Resistive	24 Bit		0.12 mm
AZ Displays ATM0430D12B	Blue, Green, Red	White	272	480	53.86 mm	95.04 mm	Parallel	LED	TFT - Color	Transmissive	109.22 mm	4.3 in	0.2 mm	0.07 mm					24 Bit
AZ Displays ATM0430D44	Blue, Green, Red	White	480	800	53.86 mm	95.04 mm	Parallel	LED	TFT - Color, IPS (In-Plane Switching)	Transmissive	109.22 mm	4.3 in	0.11 mm	0.04 mm	0.11 mm				24 Bit		0.12 mm
