130E405032-E

Active

METZ CONNECT USA Inc.

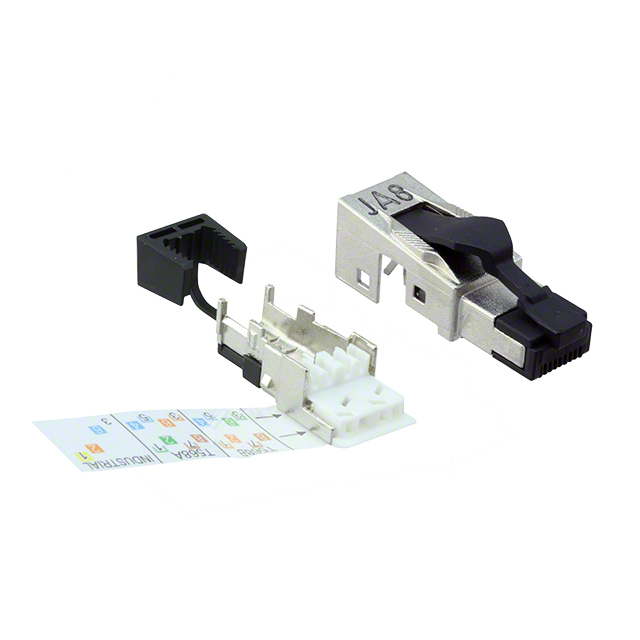

CAT 6A RJ45 FIELD PLUG PRO

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CAT 6A RJ45 FIELD PLUG PRO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	130E405032-E	130E40503 Series

Cable Type	Round Cable, Solid, Stranded Wires	Round Cable, Solid, Stranded Wires
Color	Black	Black, Green
Connector Type	Plug	Plug
Contact Finish	Gold	Gold
Contact Material	Tin Bronze	Tin Bronze
Current Rating (Amps)	1 A	1 A
Features	Strain Relief, Locking Hook, Housing	Strain Relief, Locking Hook, Housing
Housing Material	Zinc Die Cast	Zinc Die Cast
Length [x]	1.96 "	1.96 - 1.961 "
Length [x]	49.78 mm	49.78 - 49.8 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Positions/Contacts	-	4
Number of Positions/Contacts	-	8
Ratings	Cat6a	Cat6a, Cat5
Shielding	Shielded	Shielded
Termination	IDC	IDC
Voltage Rating	50 V	50 V
Wire Gauge [Max]	27 AWG	27 AWG
Wire Gauge [Min]	22 AWG	22 AWG

CAT 6A RJ45 FIELD PLUG PRO

Part	Shielding	Current Rating (Amps)	Housing Material	Voltage Rating	Termination	Cable Type	Number of Positions/Contacts	Features	Length [x]	Length [x]	Color	Connector Type	Contact Finish	Contact Material	Ratings	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
METZ CONNECT USA Inc. 130E405032-E	Shielded	1 A	Zinc Die Cast	50 V	IDC	Round Cable, Solid, Stranded Wires	8p8c (RJ45, Ethernet)	Housing, Locking Hook, Strain Relief	1.96 "	49.78 mm	Black	Plug	Gold	Tin Bronze	Cat6a	22 AWG	27 AWG
METZ CONNECT USA Inc. 130E405032PE	Shielded	1 A	Zinc Die Cast	50 V	IDC	Round Cable, Solid, Stranded Wires		Housing, Locking Hook, Strain Relief	1.961 in	49.8 mm	Green	Plug	Gold	Tin Bronze	Cat5	22 AWG	27 AWG	4	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
