C3225X7T1A107M250AC
ActiveTDK Corporation
CAP, 100UF, 10V, MLCC, 1210 ROHS COMPLIANT: YES
C3225X7T1A107M250AC
ActiveTDK Corporation
CAP, 100UF, 10V, MLCC, 1210 ROHS COMPLIANT: YES
Description
General part information
C3225X7T1A107M250AC

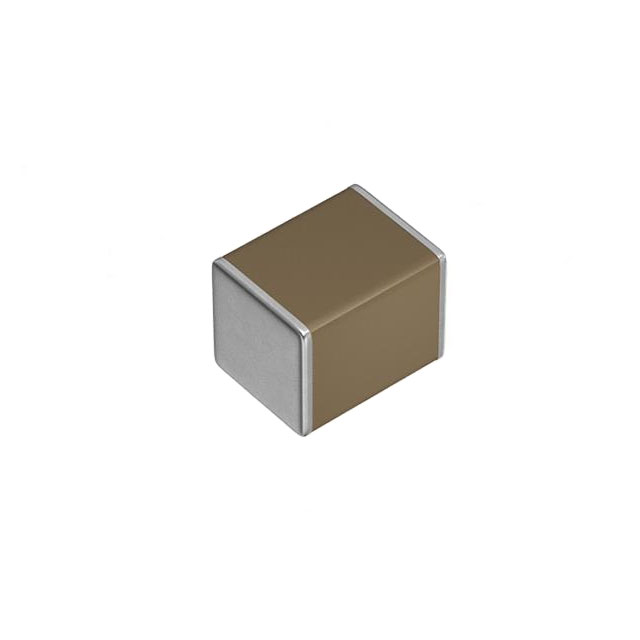

100 µF ±20% 10V Ceramic Capacitor X7T 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C3225X7T1A107M250AC |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Features | Low ESL |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | X7T |
| Thickness (Max) | 0.114 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
